Overview

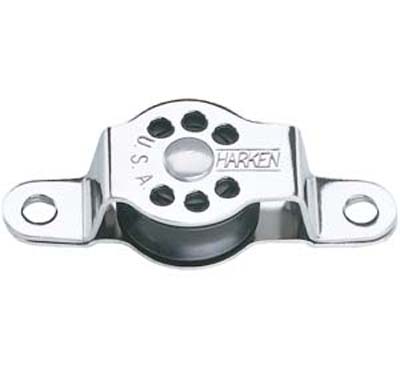

The Harken® M22mm Micro Cheek Block can be fastened to decks or spars to allow lines to run and be turned while staying close to that surface.
| SPECIFICATIONS: | |
| Maximum Working Load: | 200 lbs. |
| Breaking Load: | 1,200 lbs. |
| Weight: | 0.75 ounce |
| Fasteners: | #10 Round Head Screws |
| DIMENSIONS: | |
| Maximum Line Diameter: | 1/4" |
| Length: | 2-1/2" |
| Sheave Diameter: (22 mm) | 7/8" |
| Mounting Hole Spacing: | 2-1/16" |
