Overview

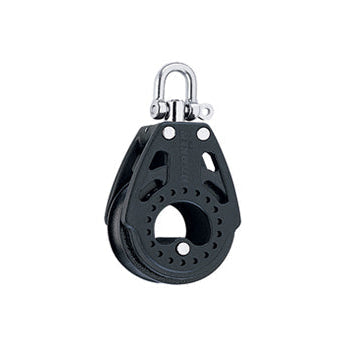

The Harken® Swivel Carbo Block is low-friction, lightweight, strong, reliable and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.
| SPECIFICATIONS: | |
| Maximum Working Load: | 792 lbs. |
| Breaking Load: | 2,380 lbs. |
| Weight: | 3.1 ounces |
| Requires Shackle Pin of Size: | 3/16" (5 mm) |
| DIMENSIONS: | |
| Maximum Line Diameter: | 3/8" |
| Length: | 4-5/16" |
| Sheave Diameter: (57mm) | 2-1/4" |
