Overview

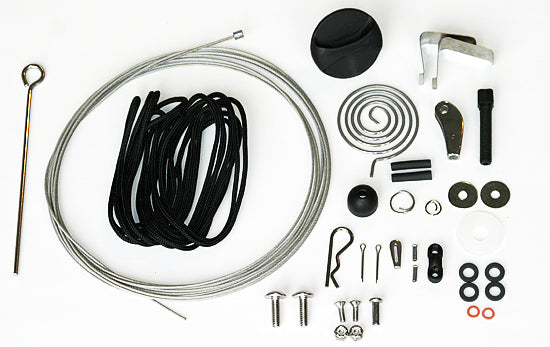

This is a comprehensive set of spare parts, designed to service all SmartTrack components.
Kit contents include:
- Toe Pilot Foot Control Parts:
- Cable Adjustment Bolt (1)
- Neoprene Washer (4)
- Rudder Control Cable, 15 ft. (1)
- Toe Pilot Spring (2)
- Mounting Screw for Foot Control/Foot Brace (2)
- Parts for All Blade Housings:
- Ball Stop for Rudder Line (1)
- Fairlead for Rudder Line (1)
- Tension Knob for Blade Housing (1)
- Wear Washer for Tiller Pins (1)
- Rudder Retraction Line, 12ft (1)
- Shrink Tubing for Rudder Control Cable (2)
- O-Ring (2)
- End Cap for Rudder Control Cable (2)
- CRW, Body and Wedge (1)
- Hitchpin for Blade Housing Tension Knob (1)
- Cotter Pin for CRW (2)
- Spring for Foil Blade (1)
- Clevis Pin for CRW (1)
- Split Ring for CRW, 3/8" (1)
- Screw #8/32 (2)
- Flat Washer #3 (2)
- Nylock Nut #8/32 (2)
- Top Mount Long Pin Blade Housing:
- Split Ring for Long Pin, 5/8" (1)
- Rear Mount Blade Housing:
- Hinge Pin for Blade Housing Bracket (1)
