Whitby Pilot Gig Wood Parts Only Kit

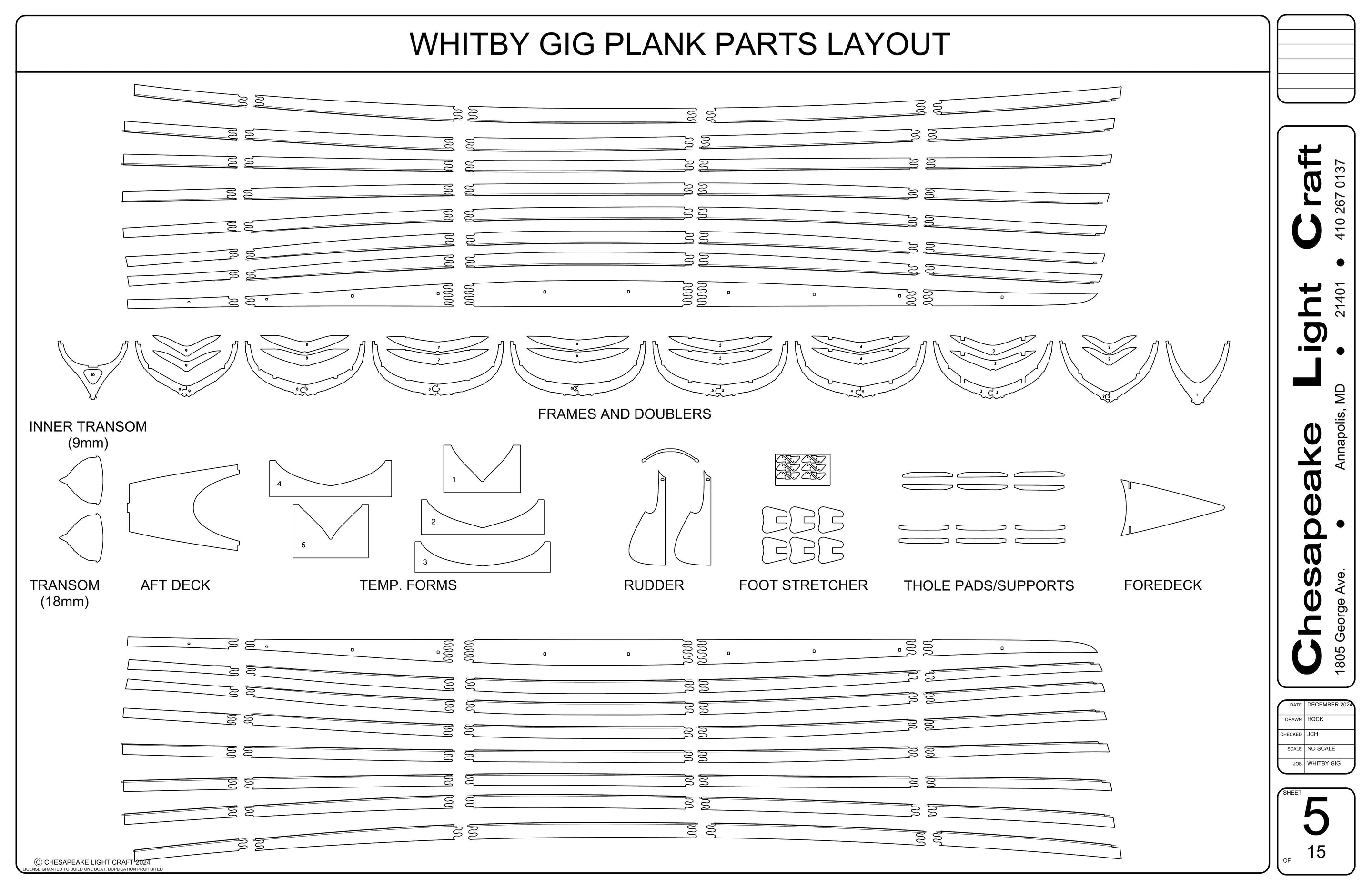

The Whitby Pilot Gig kit includes all hull parts computer-cut from BS 1088 okoume marine plywood, all holes pre-drilled and frames located. Panels are pre-drilled 9mm okoume, with the exception of 12mm Sheer panels for the Rails. Seat-tanks are slot-together 18mm okoume; frames are 18mm with 4mm okoume doublers. Transoms are 18mm plus a 9mm transom-doubler. Rails, inwales, spacer material, Yoke, Breasthook, Quarter-knees and Foot Stretcher rails are Sapele Mahogany. 12mm Rudder halves and hardware included. Computer-cut 3/4" Particle Board for Cradles/Forms and a Thwart-Seat Template also included. Comes with a thoroughly illustrated builders guide.
