Overview

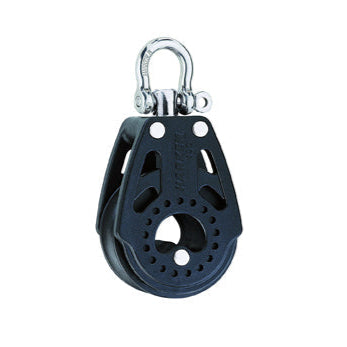

Harken® Carbo AirBlocks® are 60% stronger and 30% lighter than Harken's Classic blocks.
The nylon-resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Sheaves spin on high-load ball bearings with fitted races for low-friction operation. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.
Use the 40-mm Carbo on high performance dinghies to:
- fine-tune control on jib and mainsheet systems
- handle loaded control lines on small keelboats.
- smooth adjustment of vangs, cunninghams, and outhauls.
| SPECIFICATIONS: | |
| Safe Working Load: | 485 lbs. |
| Breaking Load: | 1,620 lbs. |
| Weight: | 1.6 ounces |
| Requires Shackle Pin of Size: | 4mm |
| DIMENSIONS: | |
| Maximum Line Diameter: | 3/8" |
| Length: | 3-3/8" |
| Sheave Diameter: (40mm) | 1-9/16" |
