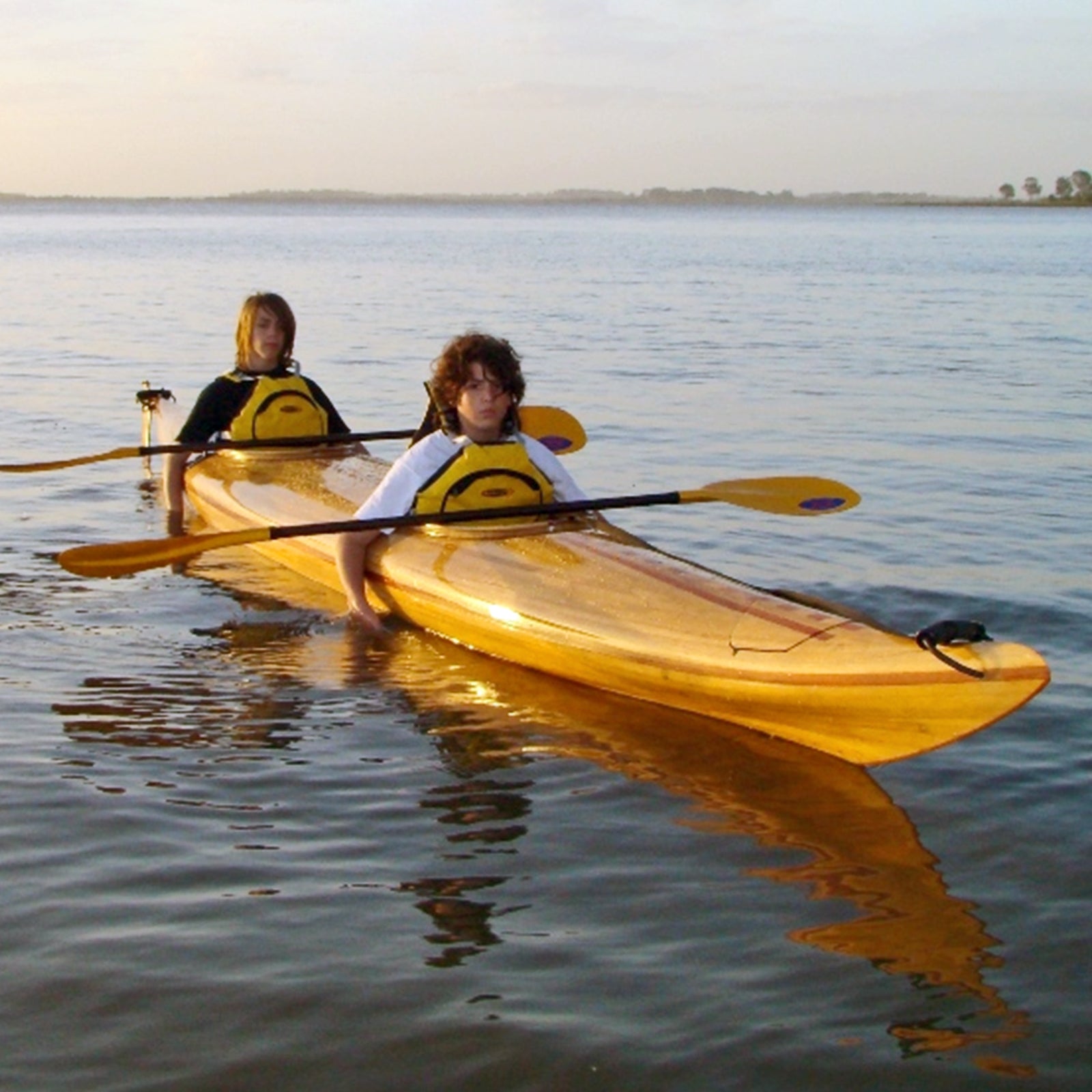

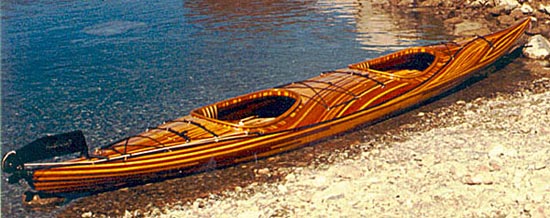

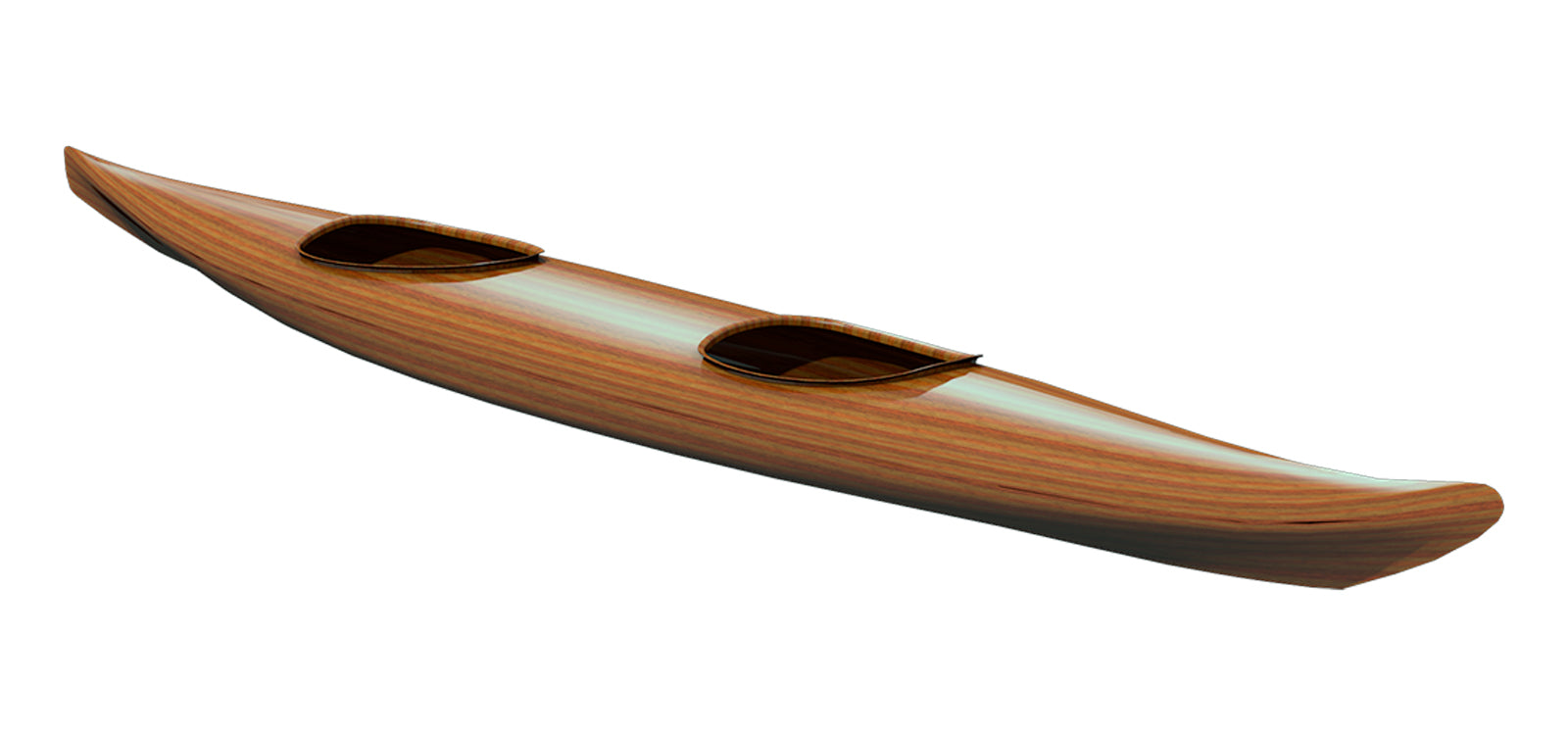

Guillemot Double kayak
Sale

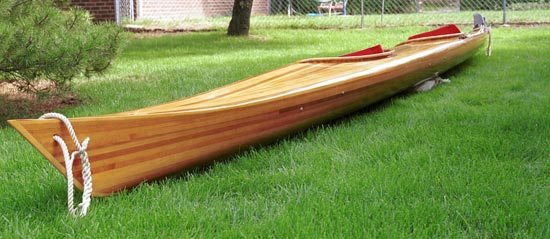

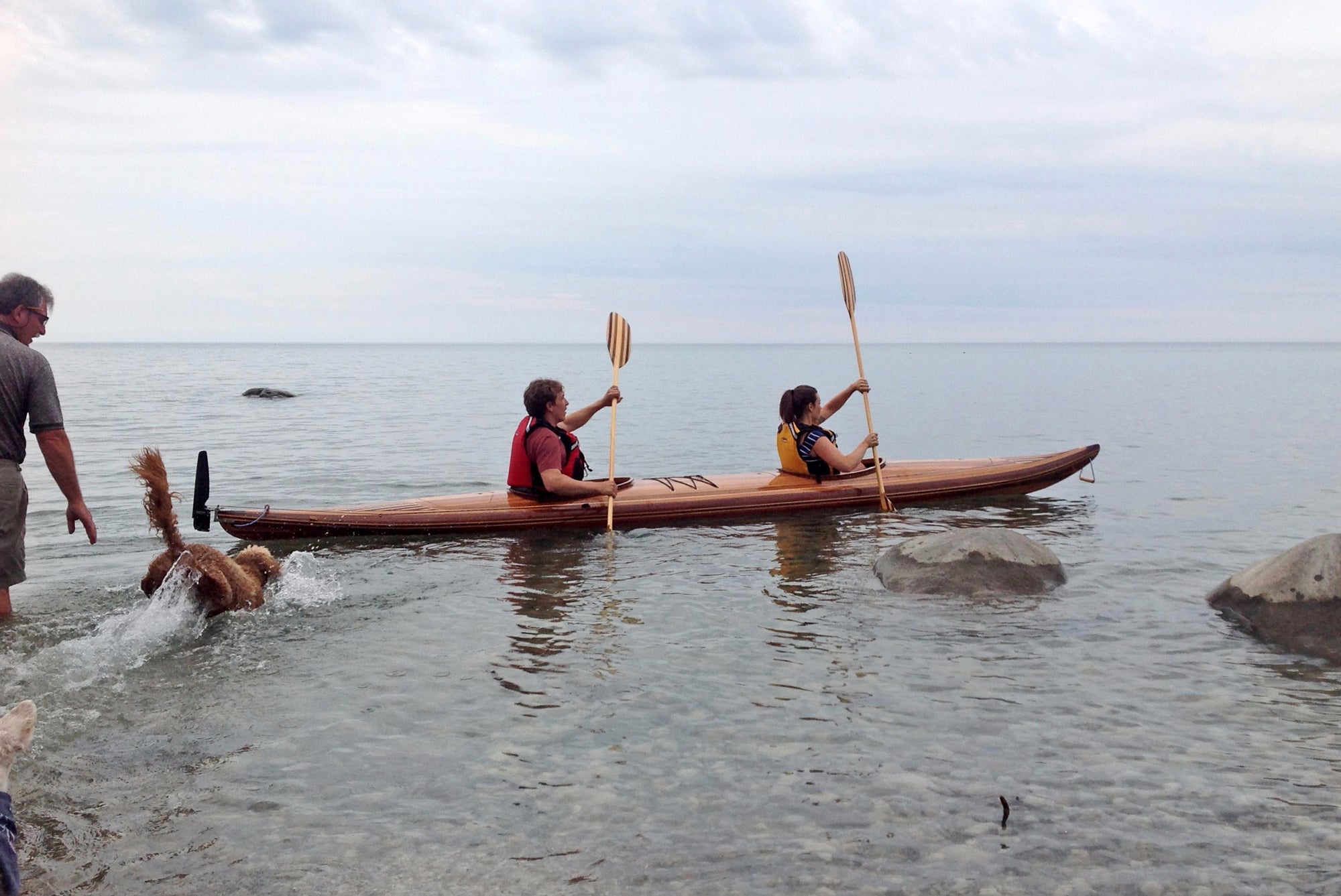

Guillemot Double built by Derrick A.
Sale

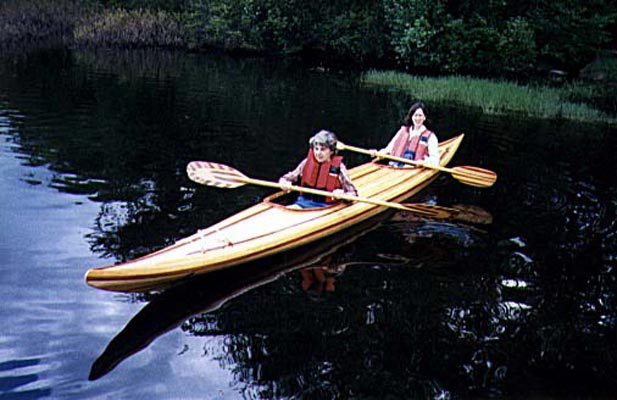

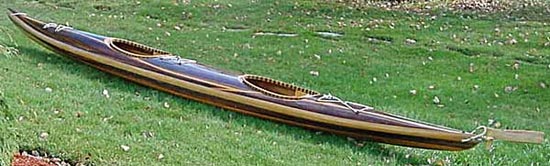

Guillemot Double
Sale

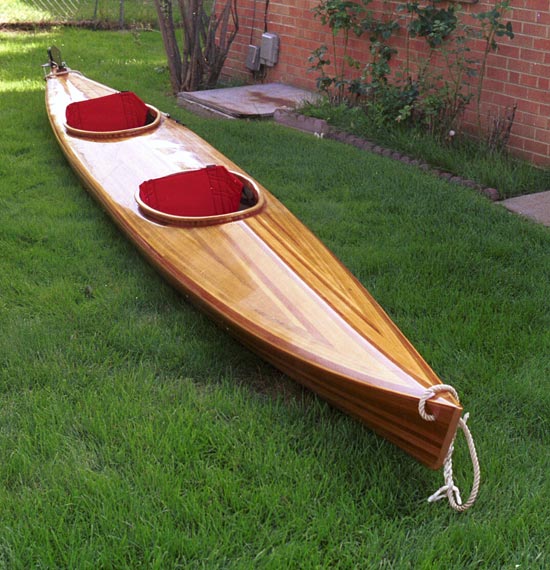

Guillemot Double
Sale

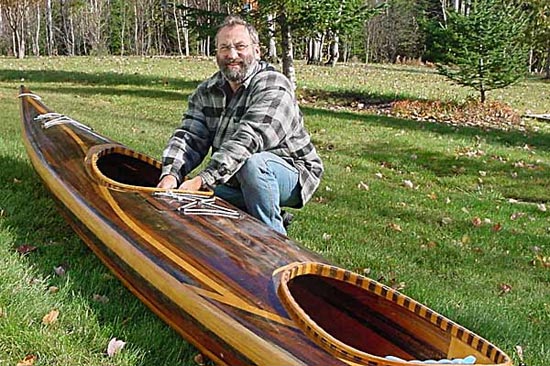

Guillemot Double
Guillemot Double kayak Thumbnail
Guillemot Double built by Derrick A. Thumbnail
Guillemot Double Thumbnail
Guillemot Double Thumbnail
Guillemot Double Thumbnail

Guillemot Double

Builder Testimonials

This design adapts Nick Schade's successful Guillemot design features to a tandem kayak.

  • Skill Level Intermediate
  • Estimated Build Time 250 Hours

Builders will benefit from some woodworking, epoxy, and fiberglass experience. Compared to CLC's "Beginner" projects, there will be more cutting and fitting of parts, and documentation is less comprehensive.

This time estimate assumes builders have already built a couple of stitch-and-glue boats.

Build this boat if...

  • You and your partner are beginning to intermediate paddlers
  • You are seeking a roomy, stable, and comfortable kayak
  • You prefer to use a kayak that will take a rudder

  • For Woodcrafters

    Boatbuilders, sharpen your block planes!

  • Classic Appeal

    Traditional looks that will never age

  • Quality Materials

    Only the best professional-grade materials

If you love woodworking, this is a project where you get to make wood shavings. You'll need to be comfortable with a sharp plane and a Japanese pull-saw, but the reward is a work of craftsmanship that's all your own.

Classic Appeal

Some might argue that small craft design reached the zenith of looks and performance in the 19th century. We wouldn't disagree. Designs like this one will still look good in a hundred years.

Quality Materials

Our kits ship with the same first-class marine plywood, timber, epoxy, and fiberglass that we use in our own boatbuilding shop. It's not cheap, but these boats are meant to last forever!

 Build Your Kit
Shipping & Returns

Builders also looked at...

Take One of our Boatbuilding Classes

We offer classes for many of the boats we sell. Teaching sites stretch from Maryland to Washington State and from Maine to California. Click here to find out more.
Guillemot Double kayak

Guillemot Double kayak

Guillemot Double built by Derrick A.

Guillemot Double built by Derrick A.

Guillemot Double
Guillemot Double
Guillemot Double
Guillemot Double kayak Thumbnail
Guillemot Double built by Derrick A. Thumbnail
Guillemot Double Thumbnail
Guillemot Double Thumbnail
Guillemot Double Thumbnail

Specifications

Length
20'0"
Beam
28"
Cockpit Size
31" x 18"
Hull Weight
60 lbs.
Paddler Weight
200 - 500 lbs.
Max Payload
700 lbs.
Knee Height
12"
Max. Men's Shoe Size
14

Performance

Stability

5 out of 5
Very Tippy
Very Stable

Speed

3 out of 5
Cruiser
Racer

Cockpit Room

4 out of 5
Close Fit
Huge Cockpit

Payload

5 out of 5
Day Tripper
Freight Hauler

Ease of Construction

3 out of 5
Requires Patience
Very Easy
Guillemot Double built by Derrick A.
Guillemot Double built by Derrick A.

Overview

The Guillemot Double is an expansion of Nick Schade's successful Guillemot design features into a tandem kayak. It is a roomy, stable and comfortable boat. Nick drew the stern to easily accept a rudder but it is not required. The cockpits are quite far apart, permitting the paddlers to be out of sync. There is room for a hatch between the cockpits. This is a good two person kayak for beginner to intermediate paddlers. Speed-oriented paddlers who want a tandem should look at the Great Auk Double or Fast Double.

The large, deep cockpits make this boat very comfortable and secure. It has good volume for a dry ride and room to move your legs around. There is plenty of capacity for multi-day trips especially if you install a center hatch.

Do you fit in this kayak?  Study our kayak fit chart.

Our strip-built and hybrid kits ship with 50% Western Red and 50% Alaskan Yellow cedar bead & cove strips. Photos on our website and printed materials may show patterns and accent strips with walnut or other materials. Optional walnut strips are available and can be shipped with kit orders.

Buying Options

Choose Your Boatbuilding Experience

Select the components that are the best fit for your strip-planking project.

  1. Select Your Configuration

    Build From a Kit:
    Most builders start with the Base Kit. It’s all there.
    Build From Scratch:
    Build from scratch using our Plans & Manual.
    Build From a Wood Parts Only Kit:
    For those who have their own supply of epoxy, fiberglass, and hardware.
    Forms and Strongback Only Kit:
    Just the computer-cut stuff: the forms and strongback.
    Order Study Plans or Manuals:
    Like to study up a bit first? Download study plans or a copy of the assembly manual.

  2. Choose Options and Add-Ons

    Additional Components:
    You can choose colors for your strips! Also add rudders, hatch options, spray skirts, and more.

  3. Get Building!

    Kits feature all of the latest tweaks to ease assembly, including slot-together molds, CNC-cut marine plywood cockpit recesses, and precision-milled strips.

Standard Configuration

Sale
$2,598.00 $2,250.00

This Guillemot kit includes The Strip-Built Sea Kayak, drawin...

This Guillemot kit includes The Strip-Built Sea Kayak, drawings, CNC-cut forms & strongback, hatch blanks, epoxy kit, fiberglass, precision-milled bead-and-cove Western Red & Alaskan Yellow strips, 2 foam "tractor" seats, 2 Rapid Pulse backbands, 2 pairs of Keepers footbraces, and hardware.

Alternative Configurations

$1,969.00

This Guillemot "wood parts only" kit includes drawings, CNC-c...

This Guillemot "wood parts only" kit includes drawings, CNC-cut forms & strongback, hatch blanks, and precision-milled bead-and-cove Western Red & Alaskan Yellow cedar strips. Typical "wood parts only" kit buyers have an existing or ready supply of their own epoxy, fiberglass, and hardware.
$465.00

This Guillemot kit includes drawings, and CNC-cut forms &...

This Guillemot kit includes drawings, and CNC-cut forms & strongback.
$300.00

This Guillemot kit includes drawings, and CNC-cut forms.

This Guillemot kit includes drawings, and CNC-cut forms.

plans
$129.00

Additional Options

$75.00

Nick Schade suggests MiniCel Foam for bulkheads in his boats....

Nick Schade suggests MiniCel Foam for bulkheads in his boats. Two 3-inch blocks ready for fitting.
$24.95

A kit for flush hatch hold-downs, requiring no deck hardware ...

A kit for flush hatch hold-downs, requiring no deck hardware to sully your strip-planked deck. Internally mounted bungies hook to hatches. Includes machined wooden parts, hardware, and instructions. Read the instructions here.

Kit includes enough material for two hatches. Specifically: eight wooden blocks, bungie cord, stainless steel hooks, and hatch cover reinforcements.

Almost any hatch system, flush or otherwise, will work with the Invisible Hatch Hold Down scheme. These kayak kits include flush hatch kits: Shearwaters, Arctic Hawk, Sea Island Sport, Night Heron S&G and all Guillemot strip-planked kayaks.


$21.95

By Nick Schade. 202 pages, 1998. "Strip-building" - assemblin...

By Nick Schade. 202 pages, 1998. "Strip-building" - assembling a pile of thin wood strips into a functional hull - has been a popular canoe-building method for many years. Now boatbuilder Nick Schade, an engineer by training and a self-professed sea kayaking addict, has refined this time-tested method to build the more complex shapes of sea kayaks. The method is simple, forgiving, allows a liberal amount of design flexibility, and requires a minimum number of tools.

In The Strip-Built Sea Kayak, Schade presents full plans for three elegant designs inspired by the grace and seaworthiness of the Inuit and Aleut skin boats. Profusely illustrated instructions provide the details that will guide you through the process.

Videos

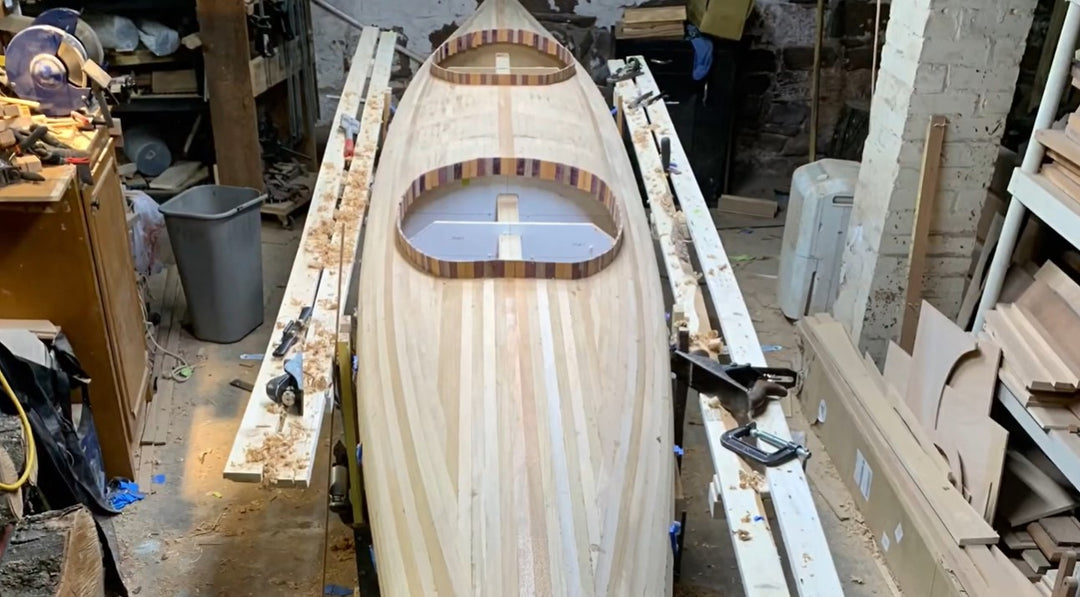

Building a Guillemot Double strip kayak

Making a Strip Built Kayak - Introduction - E1

Making A Strip Built Kayak - Cutting Strips and Forms - E2

Frequently Asked Questions

How do I order this kit?

Click on the Buying Options tab the top left of this page and follow the directions.

If I buy one of your boat kits, what else will I need?

Chesapeake Light Craft kits contain all the parts and materials you need to build the boat. The kit includes pre-cut parts, hardware, epoxy, fiberglass, plans and instructions. Our standard kayak kits also have the seats, hatches, bulkheads, footbraces, and the deck-rigging. About the only thing kits don't include is the final finish: paint or varnish. Your boat's color scheme is entirely up to you.

You'll need a few ordinary tools, like a cordless drill, a decent 5-inch sander, and for most boats a wood plane. You'll need disposables such as sandpaper and paint brushes and mixing cups.

You need a workspace a couple of feet bigger all the way around than the boat you want to build, and you'll need to be able to maintain temperatures between about 55 degrees F and 95 degrees F during steps when epoxy is being applied or curing. Since a lot of boatbuilding gets done during winter, we've written up some tips on how to heat a cold space cheaply, easily, and safely.

How much does this boat weigh and how much can it carry?

The weight and payload of this boat, along with other statistics such length and beam, can be found under Specs in the Specifications section, which is just below the lead image seen at the top of this page.

Can you send me the plans digitally?

Sorry, but until digital rights management technology for marine architectural work catches up to that used for books and music, we are unable to transmit digital plans. Currently, only study plans and manuals can be sent digitally.
