Northeaster Dory
- Skill Level Beginner
- Estimated Build Time 120 Hours
Build this boat if...
-
#1 Seller
-
Easy to Build
-
Classic Appeal
-
In-Depth Manual
Builders also looked at...
Take One of our Boatbuilding Classes
We offer classes for many of the boats we sell. Teaching sites stretch from Maryland to Washington State and from Maine to California. Click here to find out more.Specifications
Performance
Stability
Speed
Cockpit Room
Payload
Ease of Construction
Overview

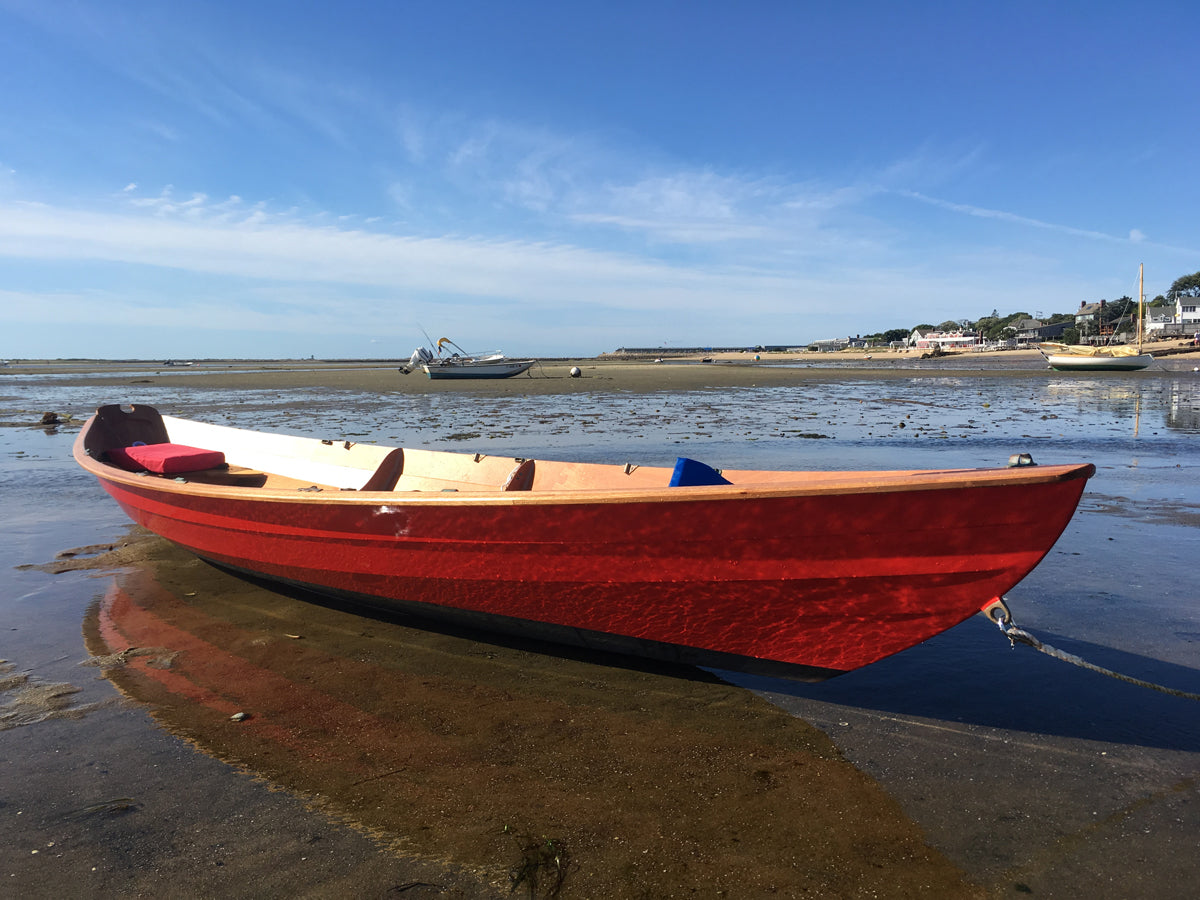

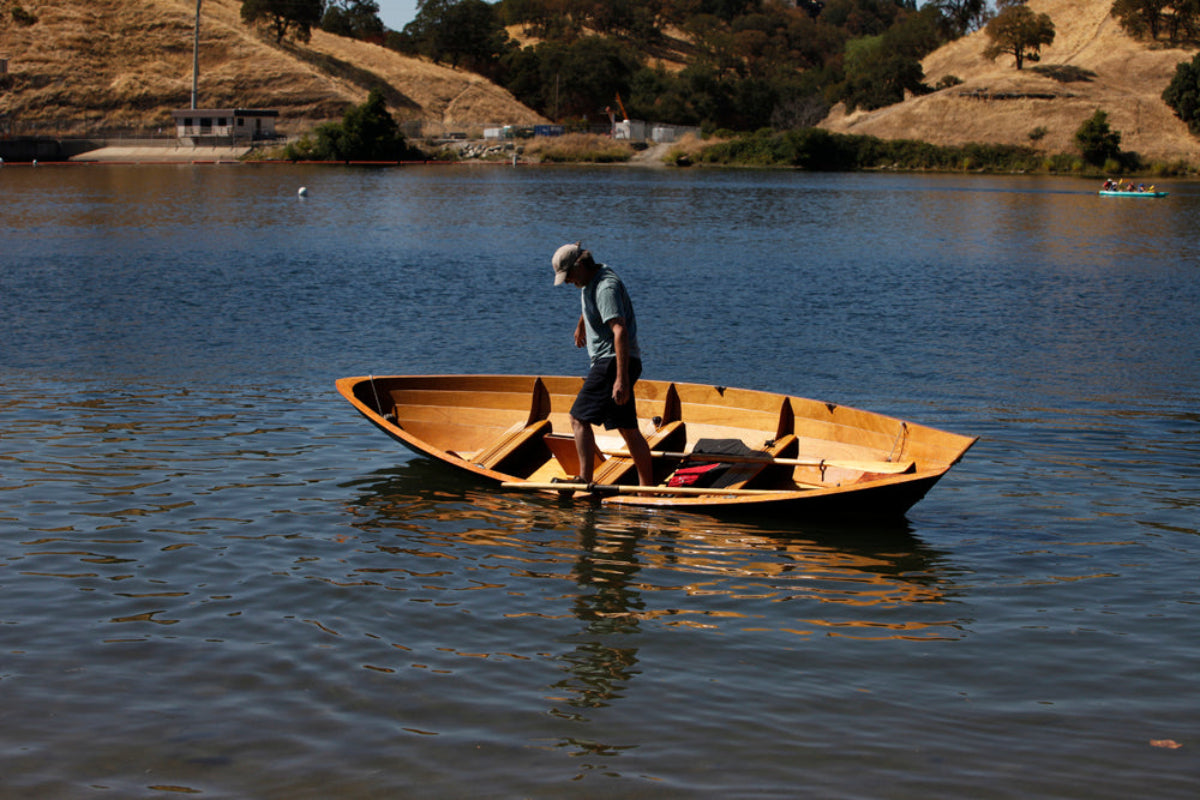

A dory is a lot of boat for the money, which explains the enduring popularity of the type going back 150 years or more. Relatively few planks means less construction work. The narrow waterline results in a fast hull under sail or oars, but the flared topsides provide ample reserve stability. Dories are great load-carriers, and the Northeaster Dory is no exception with a maximum payload of 800 pounds.
The history of the dory is somewhat obscure but the most famous are the Banks dories, used for longline cod-fishing on the Grand Banks, where the Continental Shelf stretches south of Newfoundland. The Banks dories are justifiably famous (they played a starring role in Rudyard Kipling's "Captains Courageous") but never worked well for pleasure boaters: they were too heavy, and required a thousand pounds of cod in them to have much stability.
Pleasure-boaters adopted the general type, however, and refinements include the Swampscott Dory and Nahant Dory, which both evolved in Massachusetts. Graceful round-sided lapstrake dories shaped like our 17' Northeaster Dory were once the primary recreational craft on the New England coast. They were the Boston Whalers of the early 20th century.
"When I think of a build-it-yourself dory," says designer John C. Harris, "I think of Phil Bolger's iconic Gloucester Light Dory design. There wasn't much point in doing a new dory design unless we offered something fresh and different. I wanted a dory that was easier to build, doesn't need a ladder-frame mold during construction, and that can carry more than one or two adults."

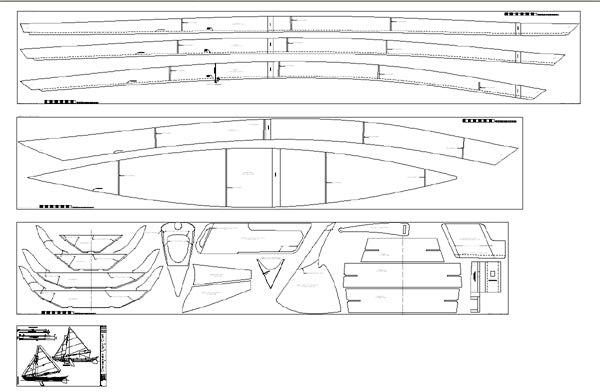

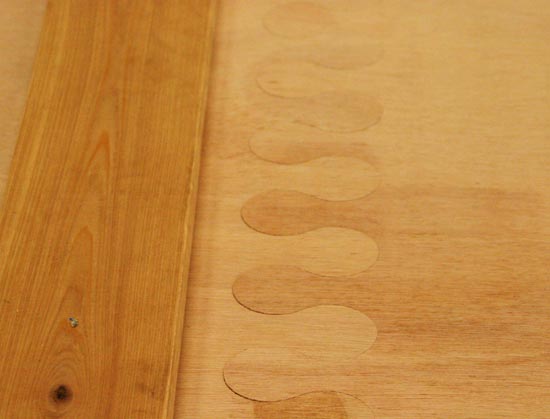

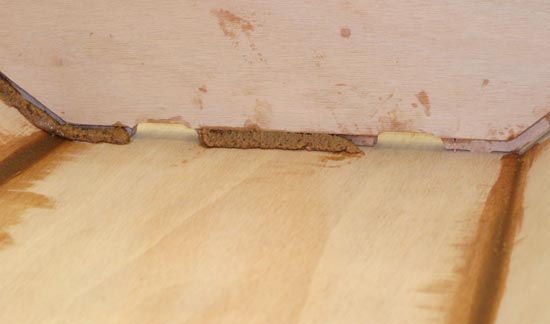

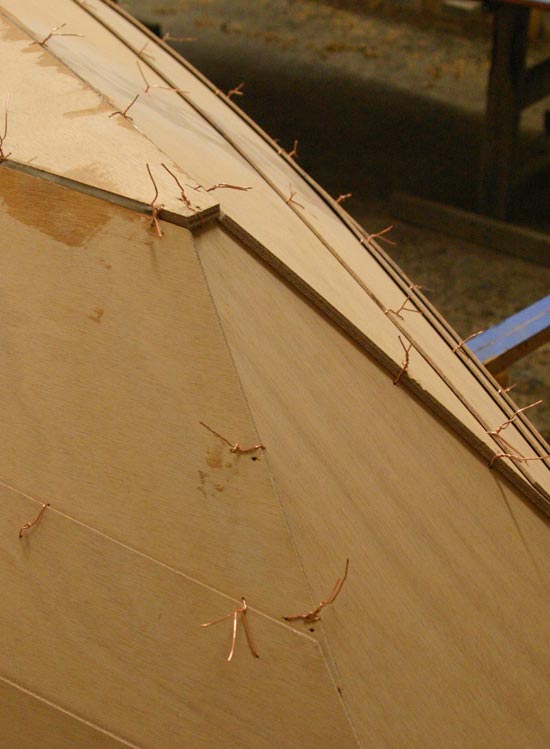

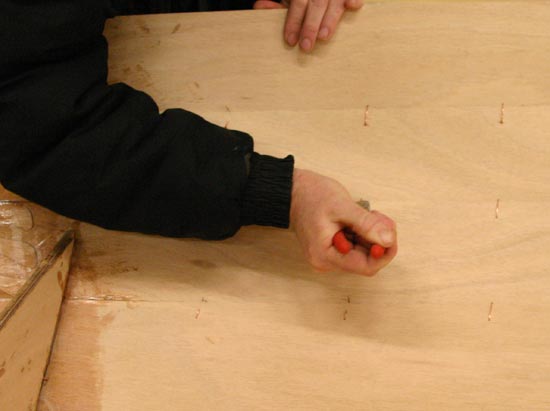

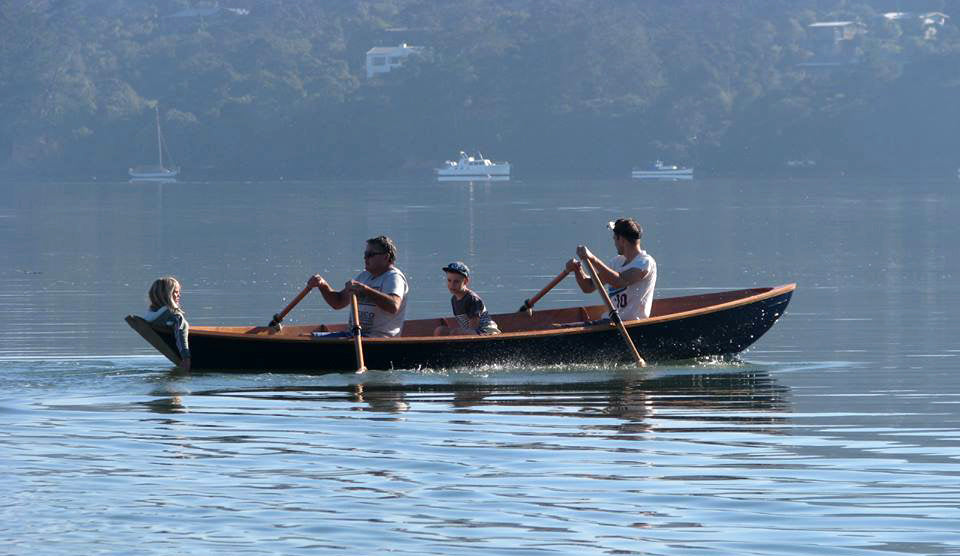

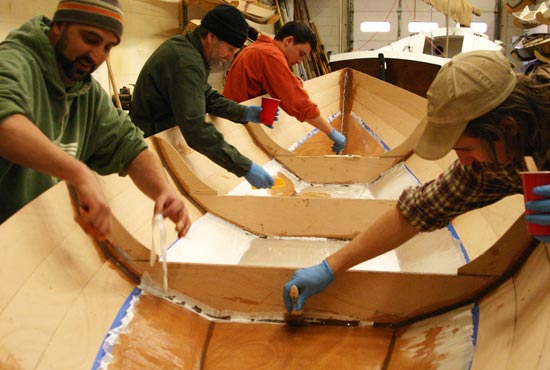

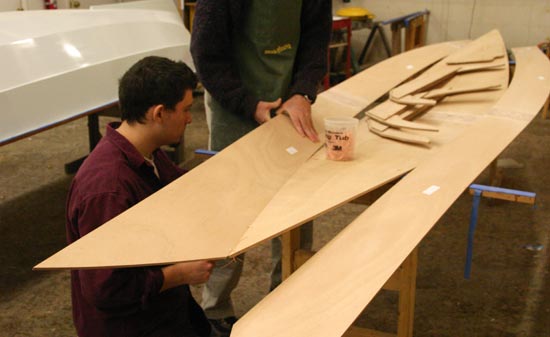

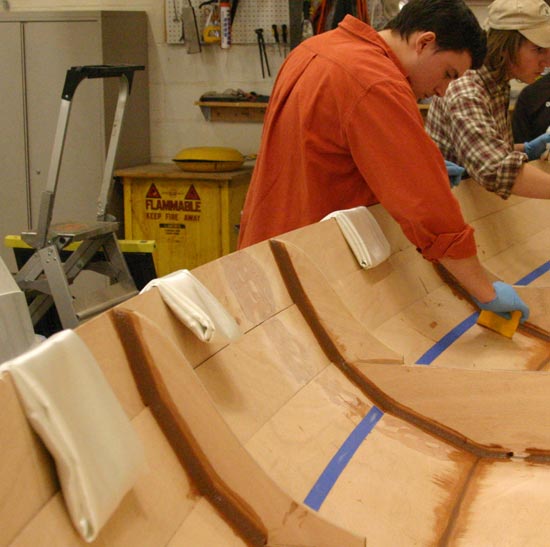

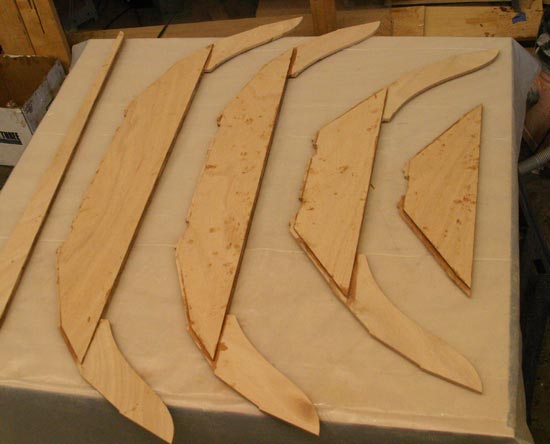

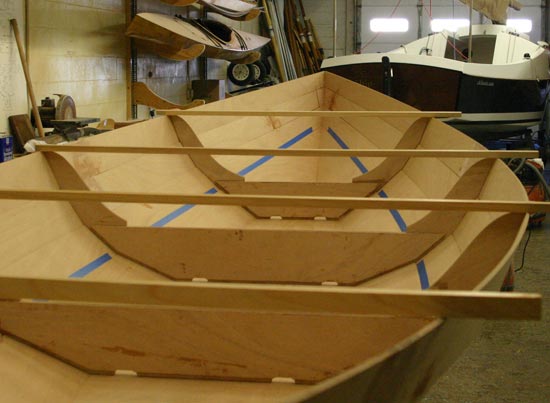

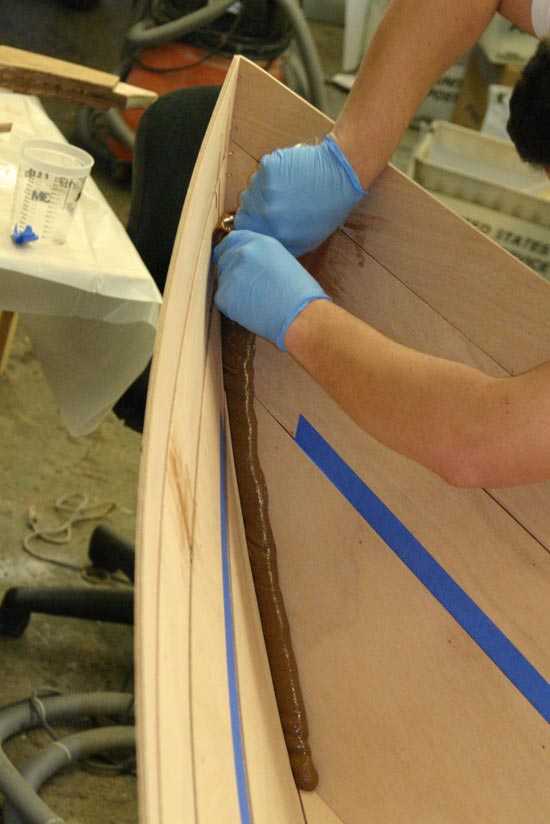

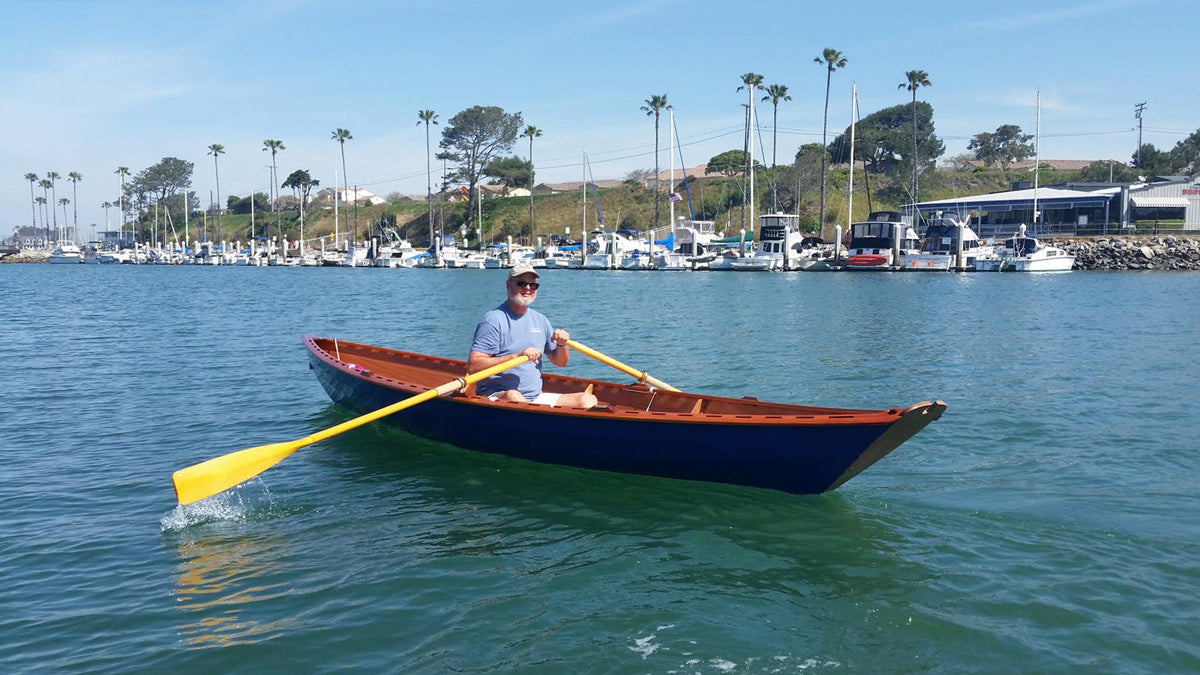

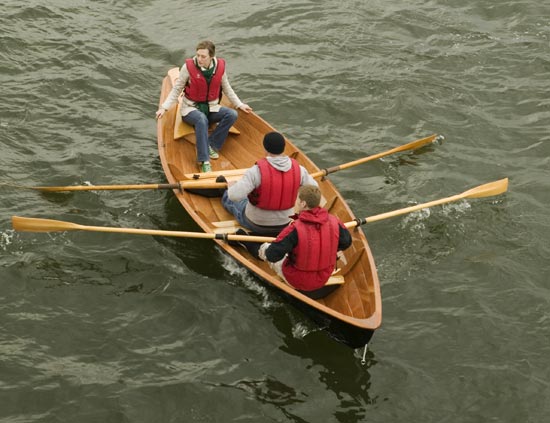

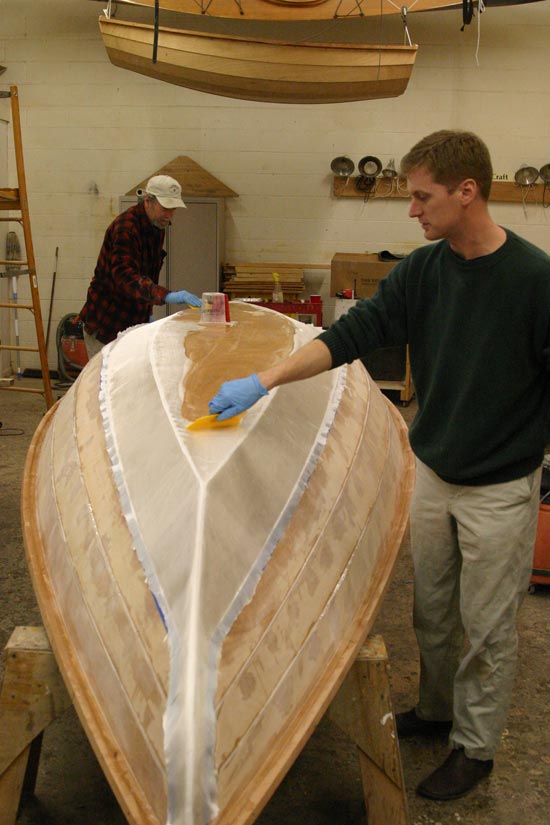

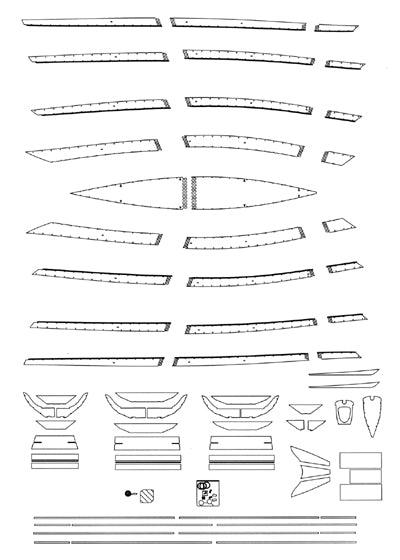

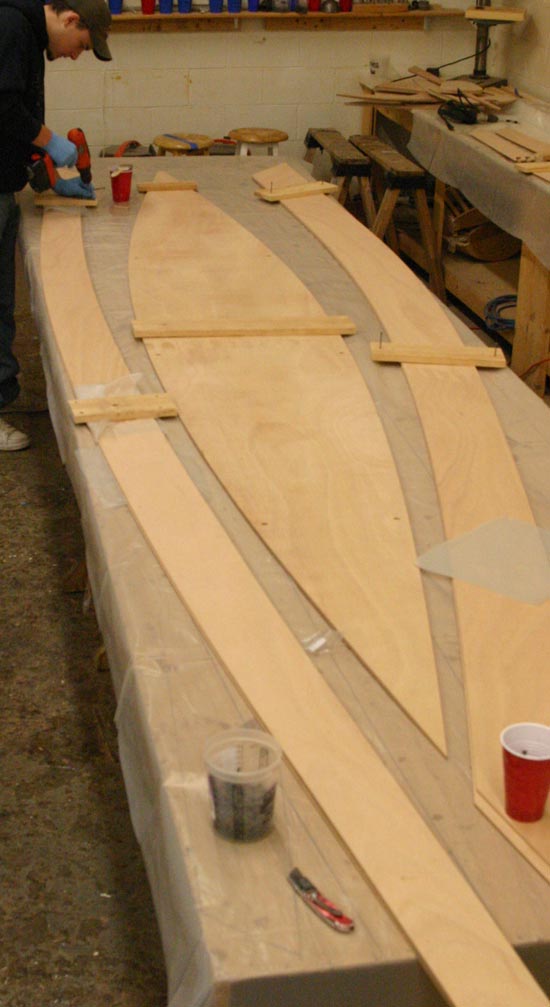

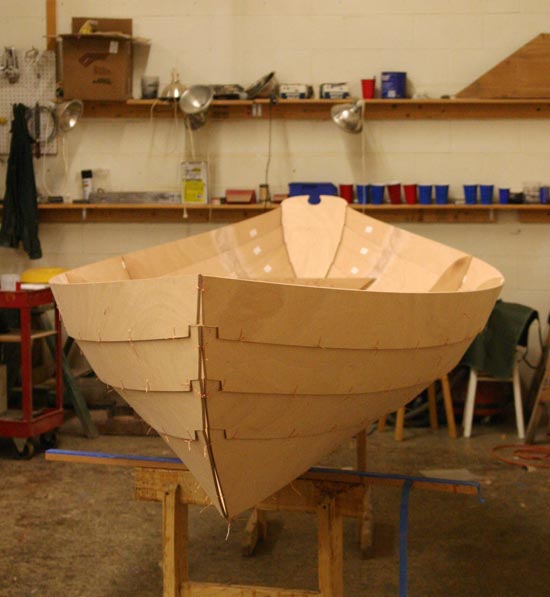

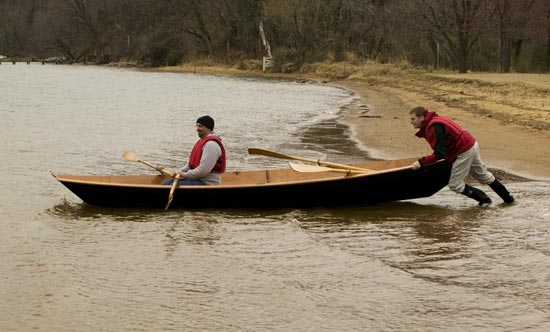

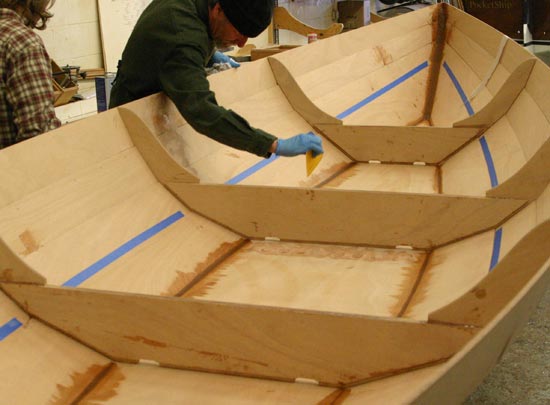

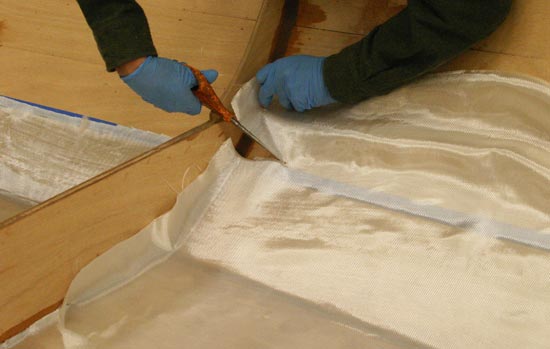

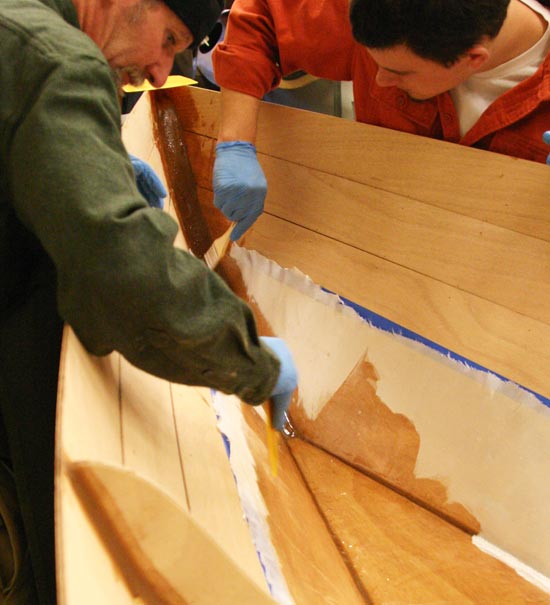

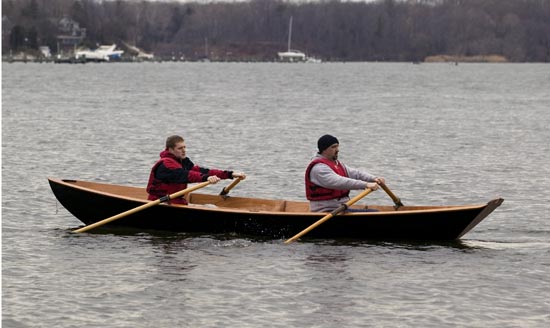

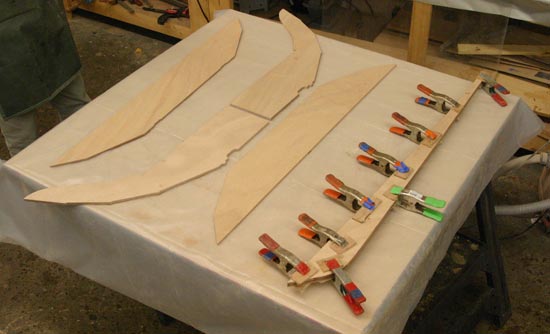

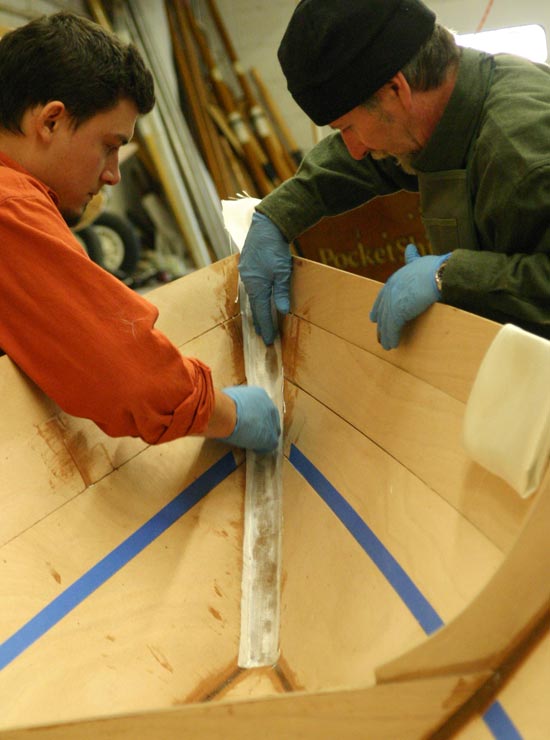

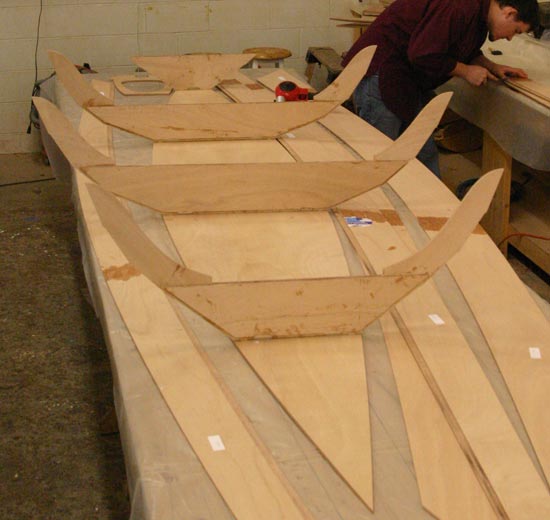

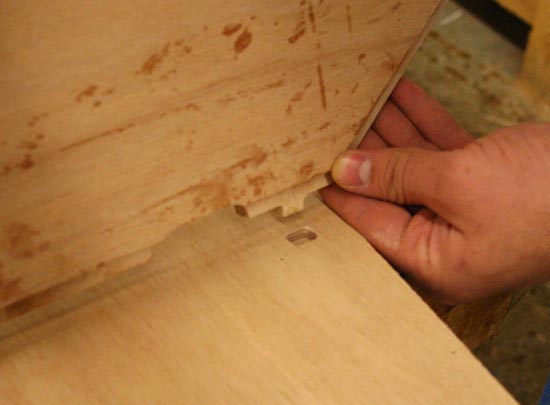

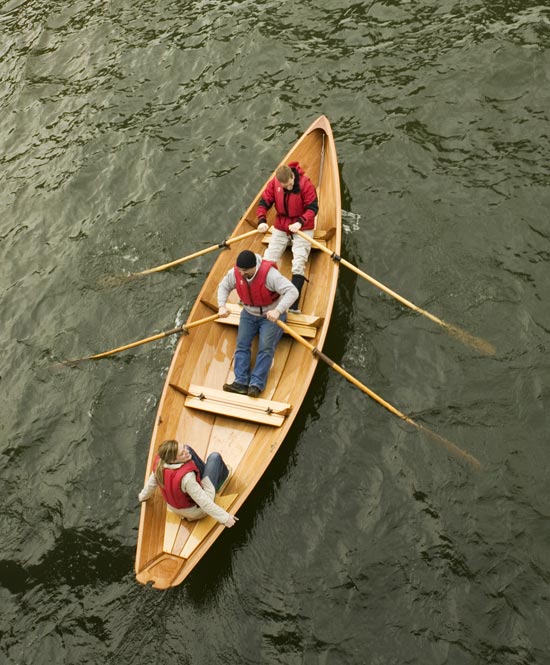

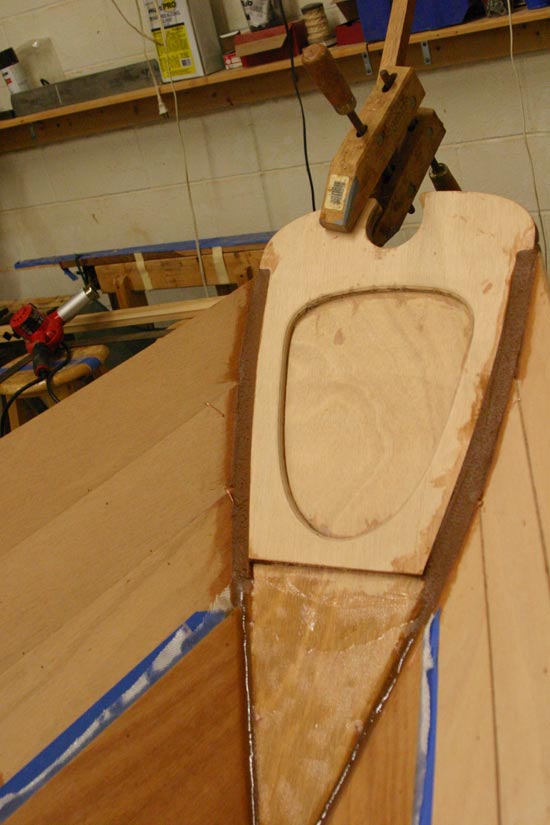

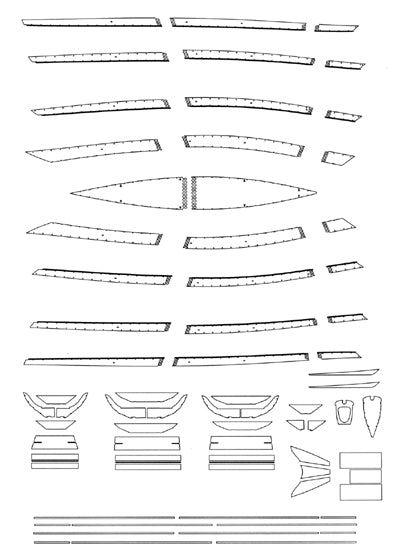

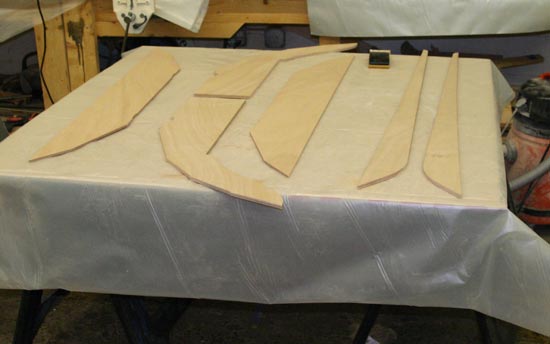

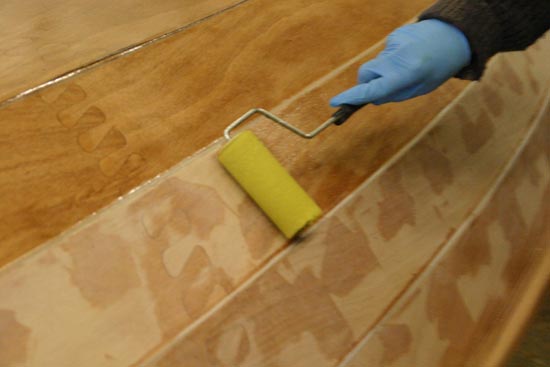

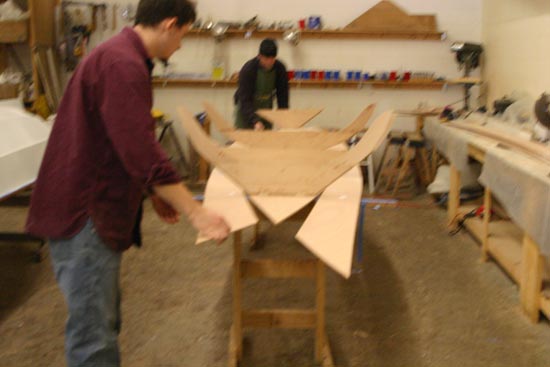

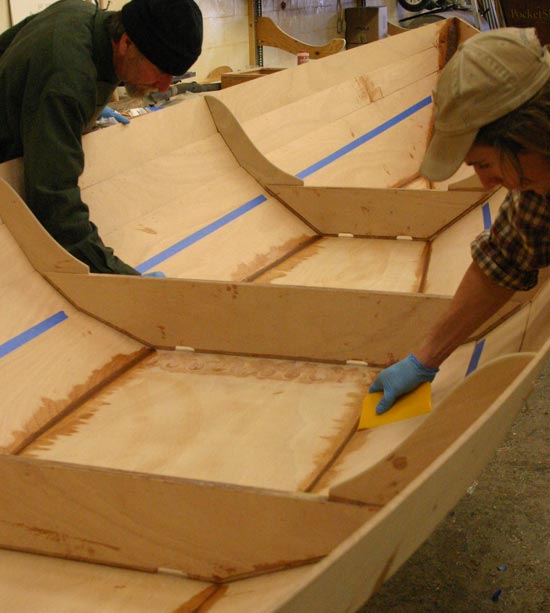

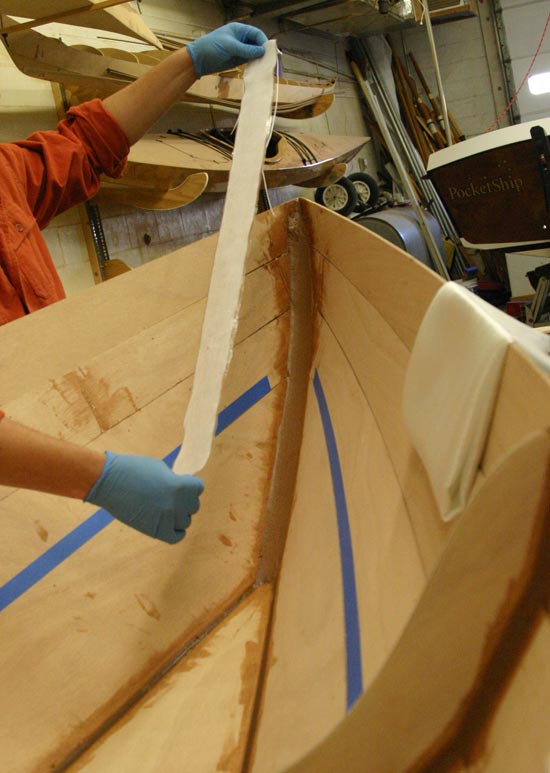

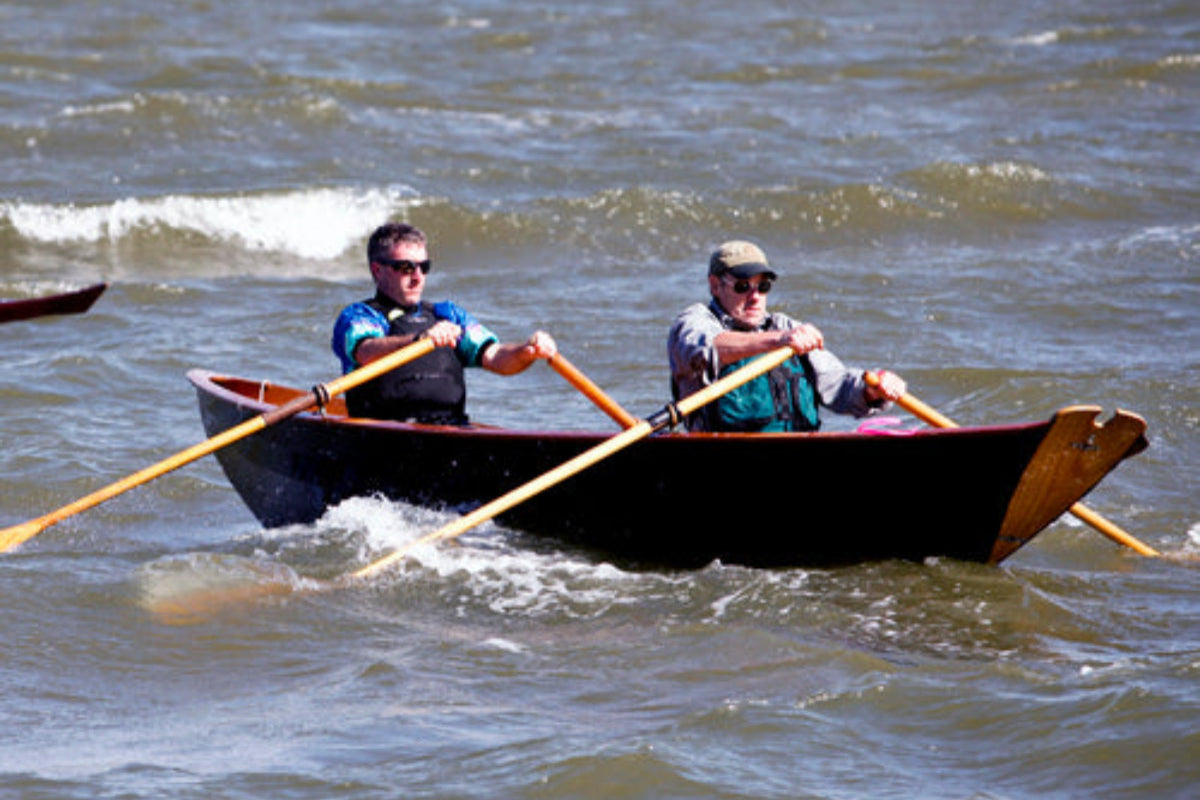

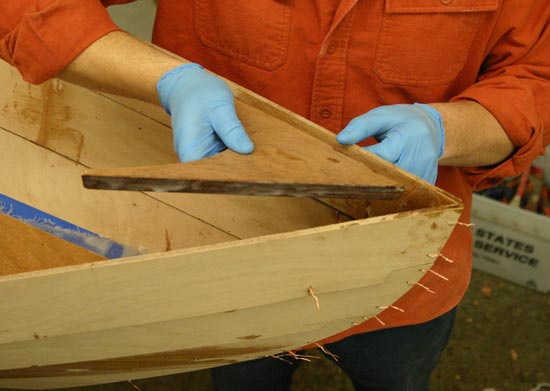

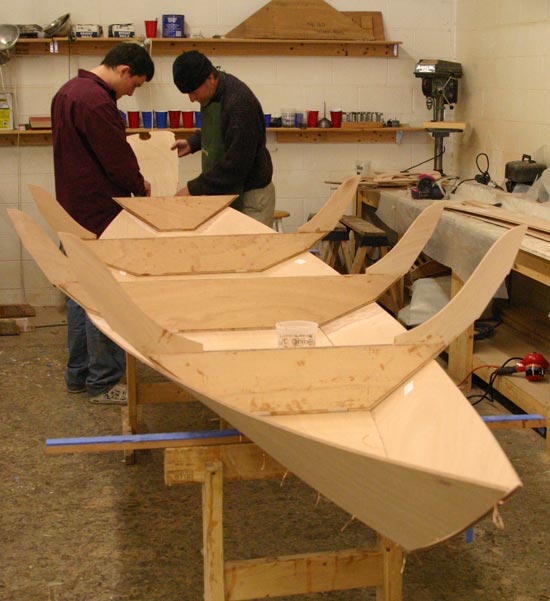

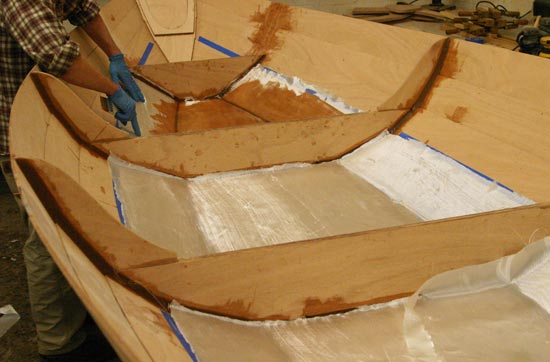

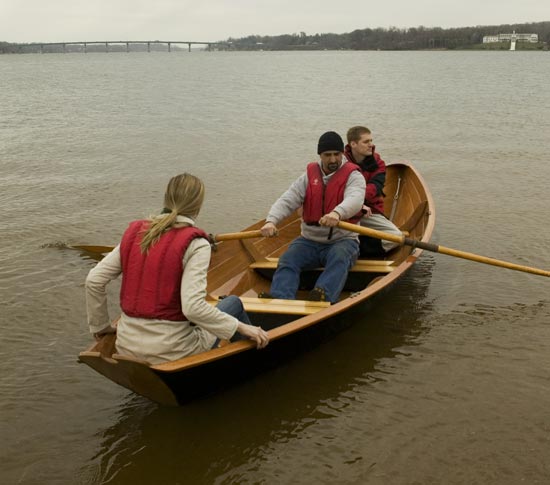

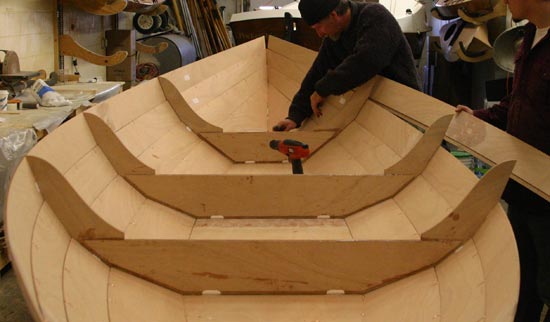

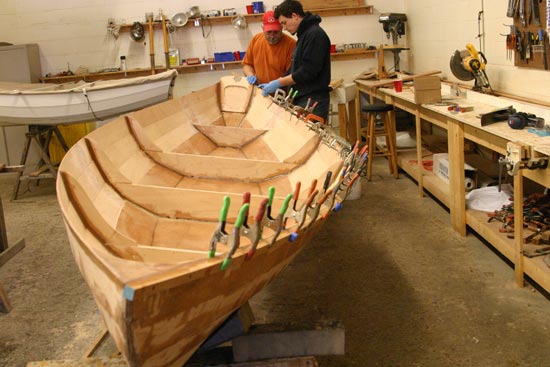

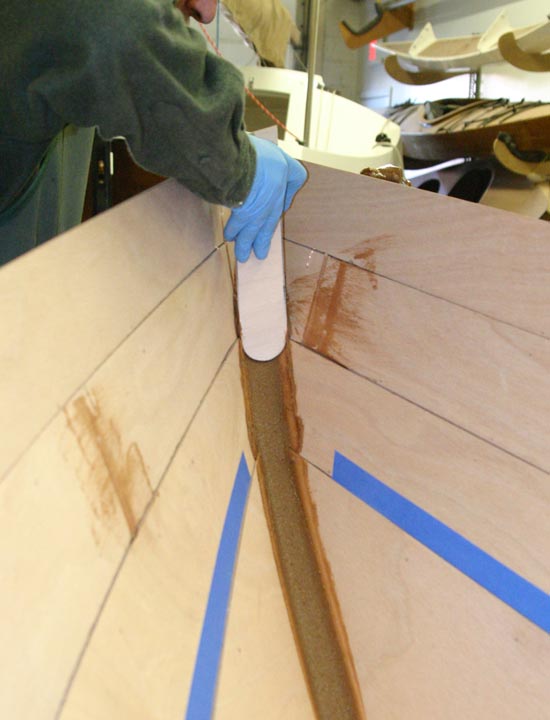

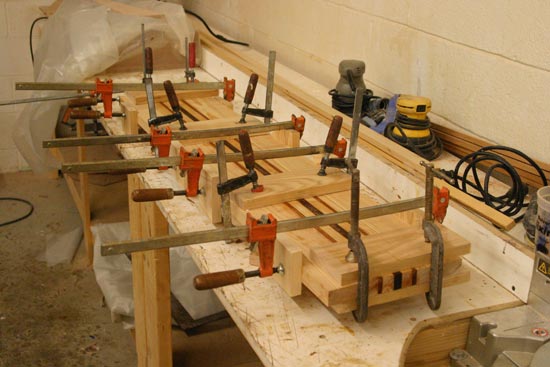

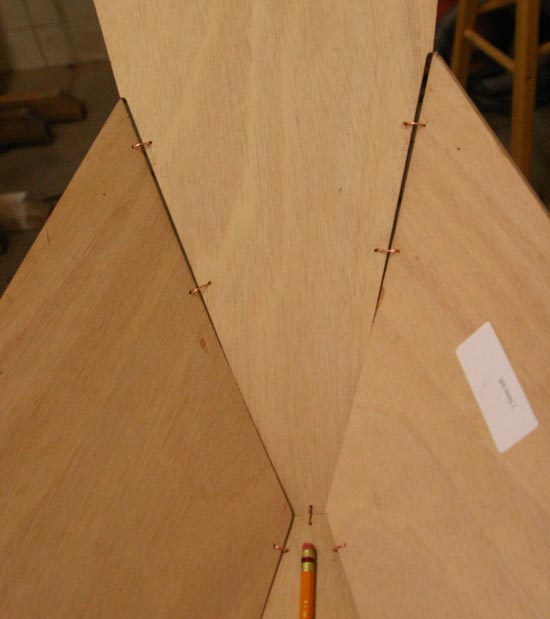

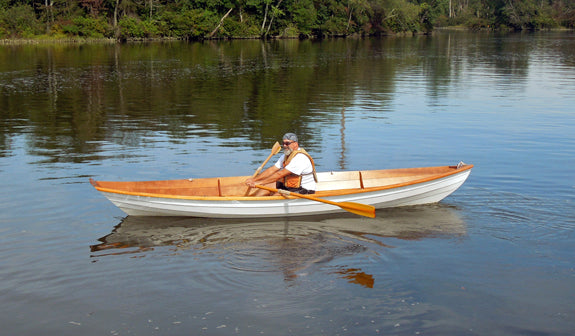

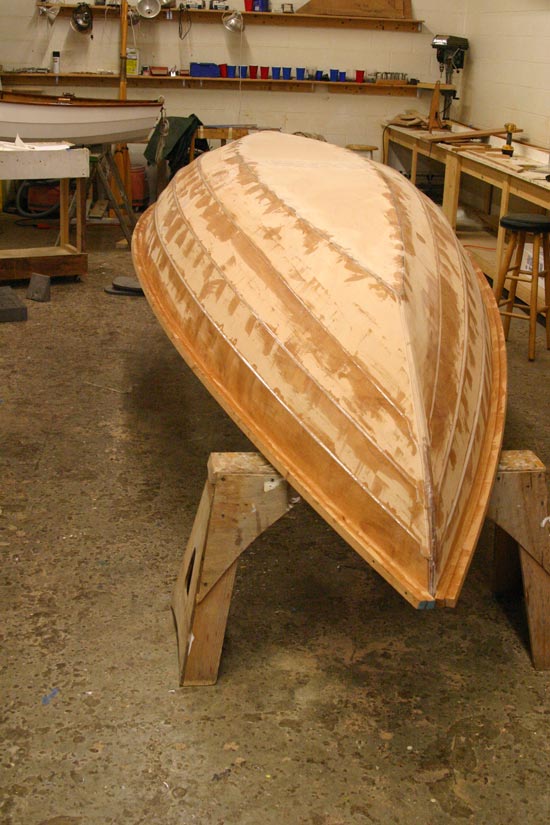

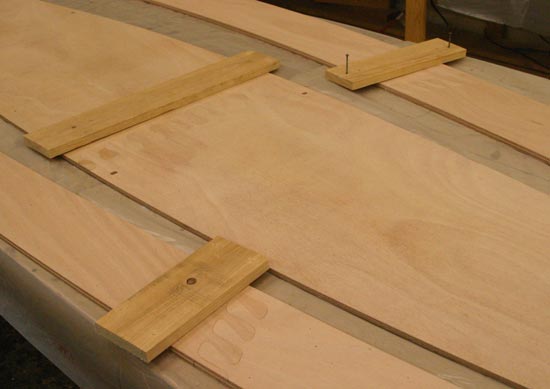

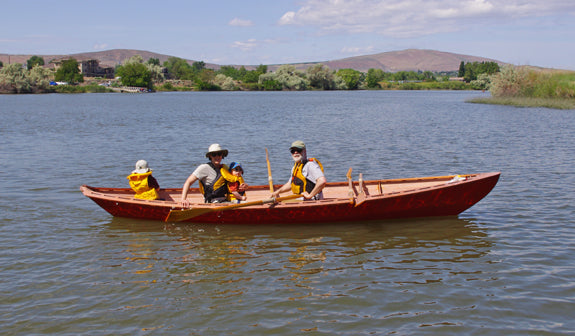

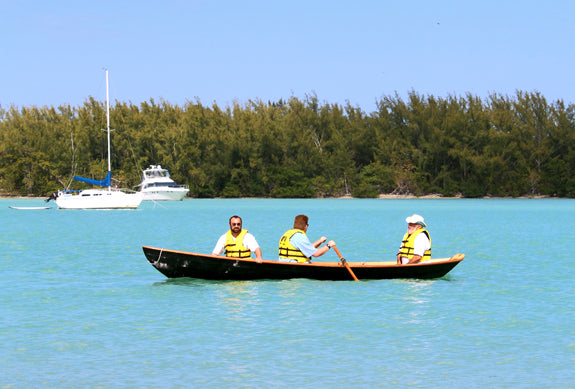

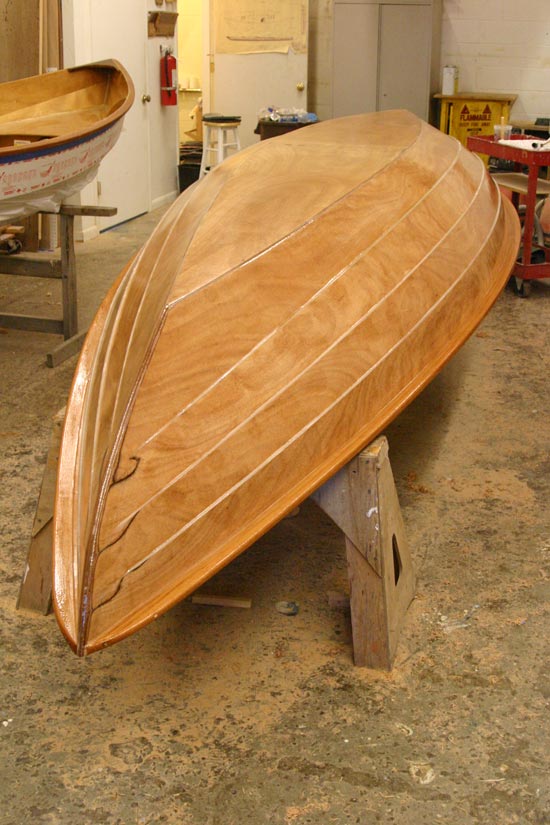

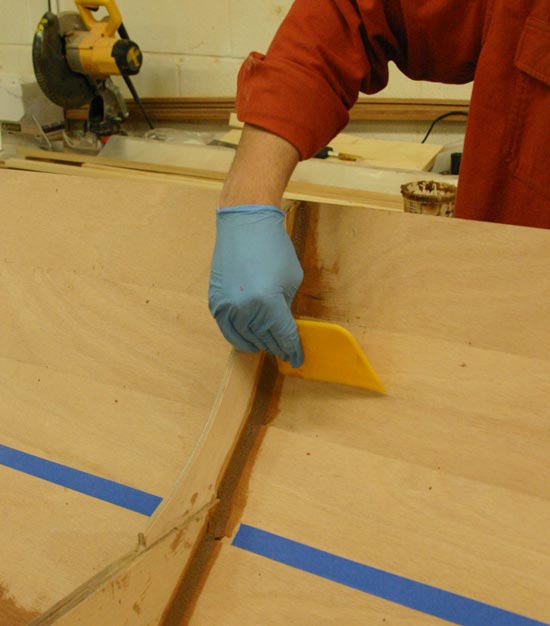

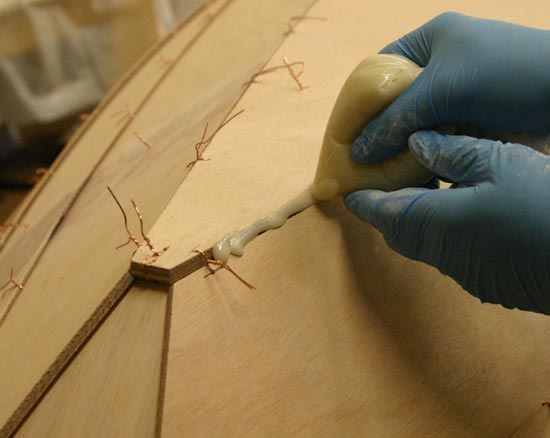

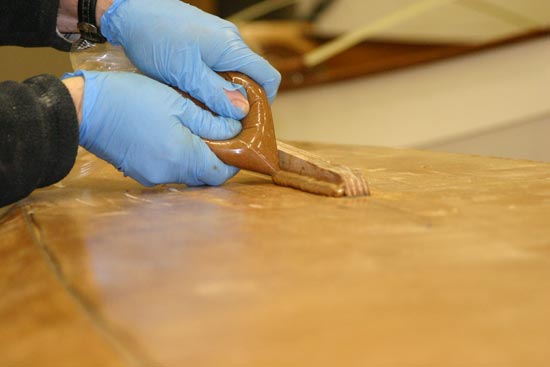

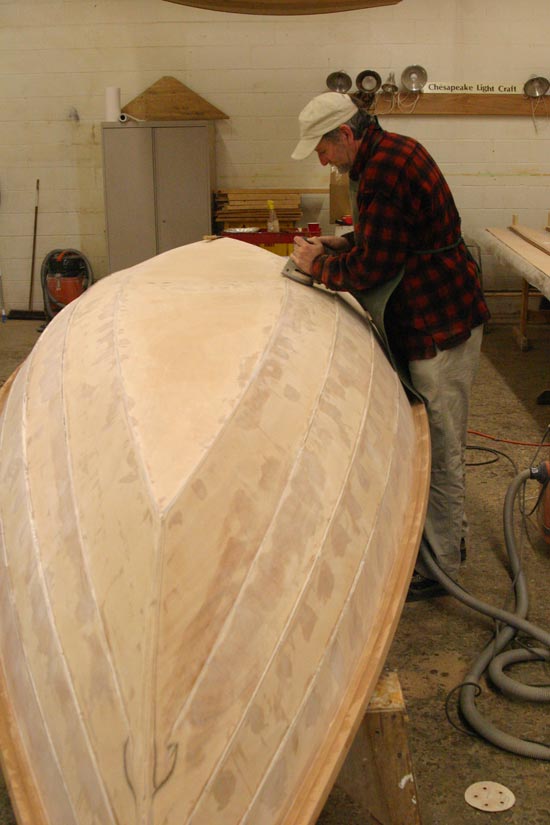

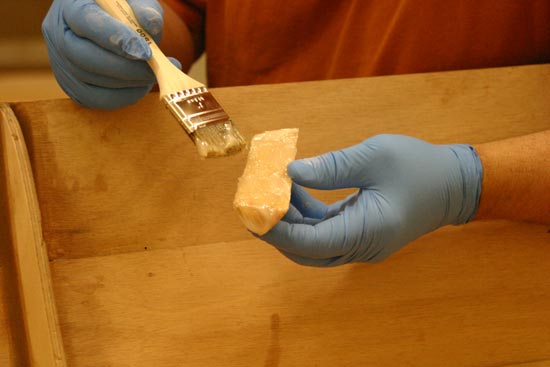

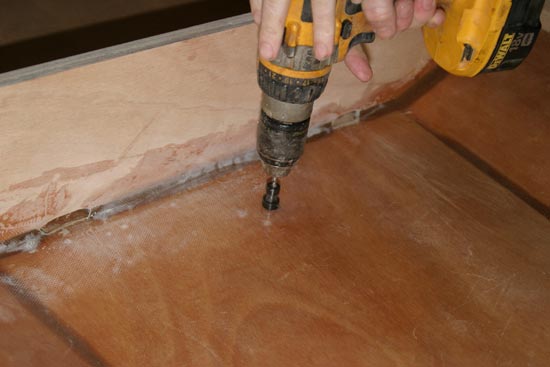

The Northeaster uses Chesapeake Light Craft's patented LapStitch™ process, in which pre-cut planking is assembled quickly with wire "stitches" and nothing more than a pair of ordinary sawhorses. Hull planking is 6mm okoume; the bottom is 9mm, fiberglassed on both sides and up onto the side planking. Bulkheads are laminated together from layers of 9mm plywood. Epoxied together, the hull is light---only about 100 pounds---and very strong. And with 800 pounds of displacement, this dory offers real versatility. It's small enough to be rowed by one person, but big enough for tandem rowing with two adults. Like all dories, the Northeaster tracks well, has a long glide, and stays dry in waves. Even four adults have comfortable seating.

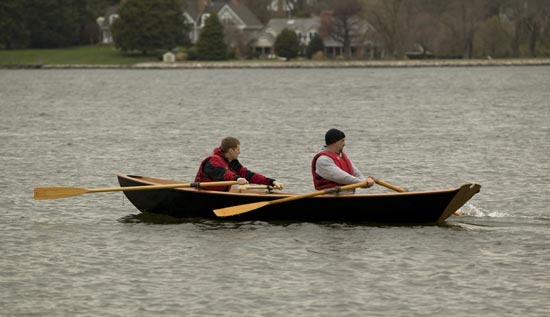

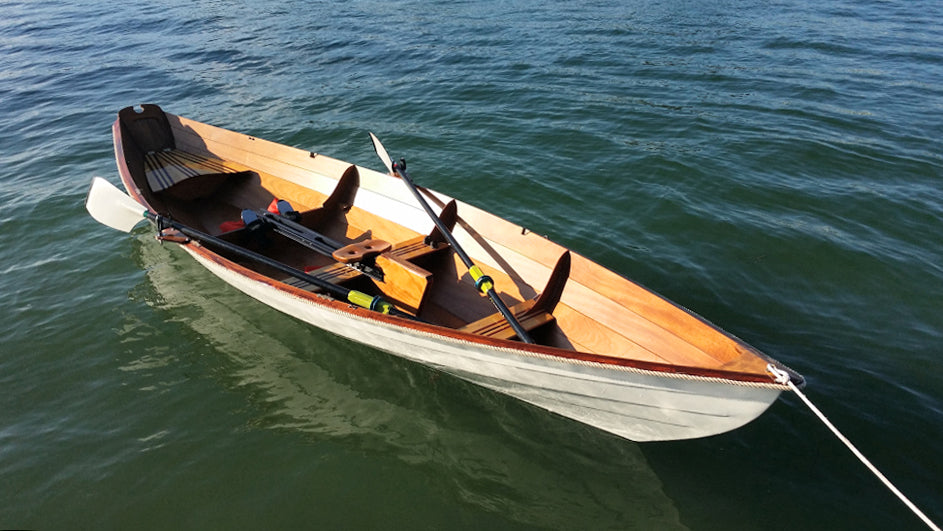

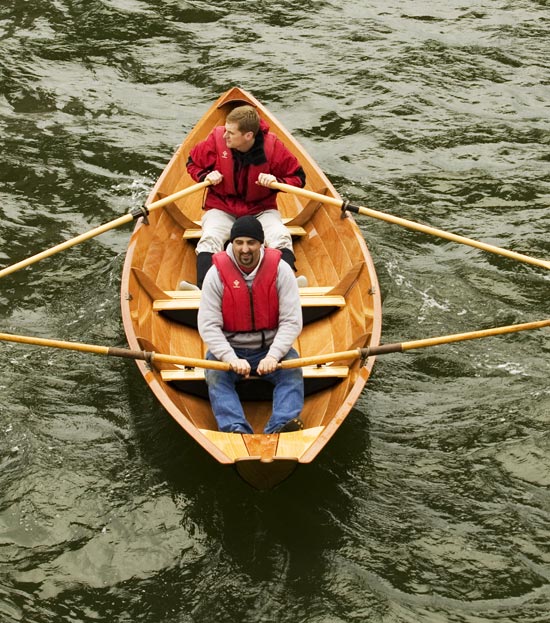

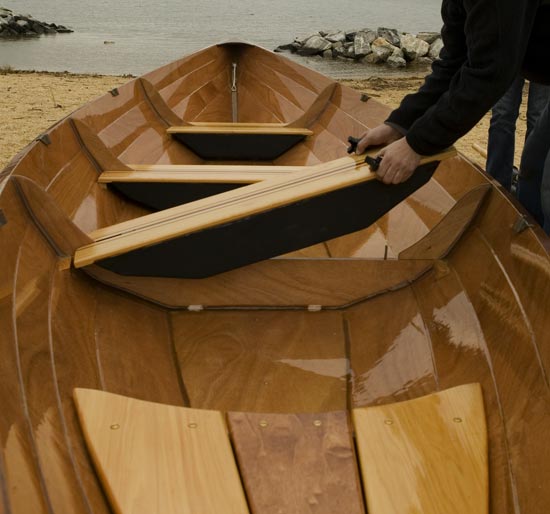

Rowers looking for a high-performance dimension may add a sliding seat without modifying the interior. In the stock rowing version, a drop-in sliding seat unit requires minutes to install so you can switch between fixed- and sliding-seat modes quickly. With a sliding seat, the Northeaster Dory is fast and dry and would be a safe and fast open water racing boat. (A sliding seat may be added to the sailing version as well, but requires minor modifications.)

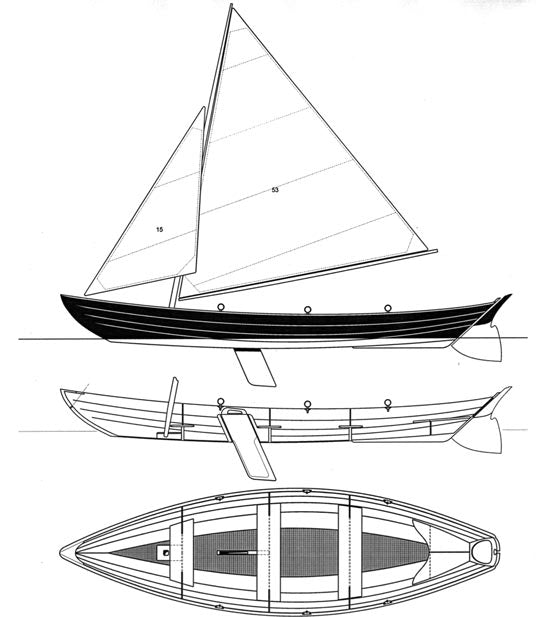

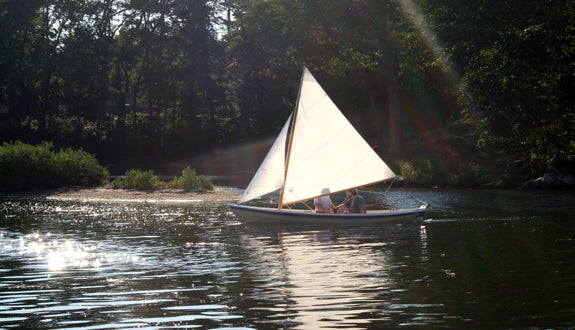

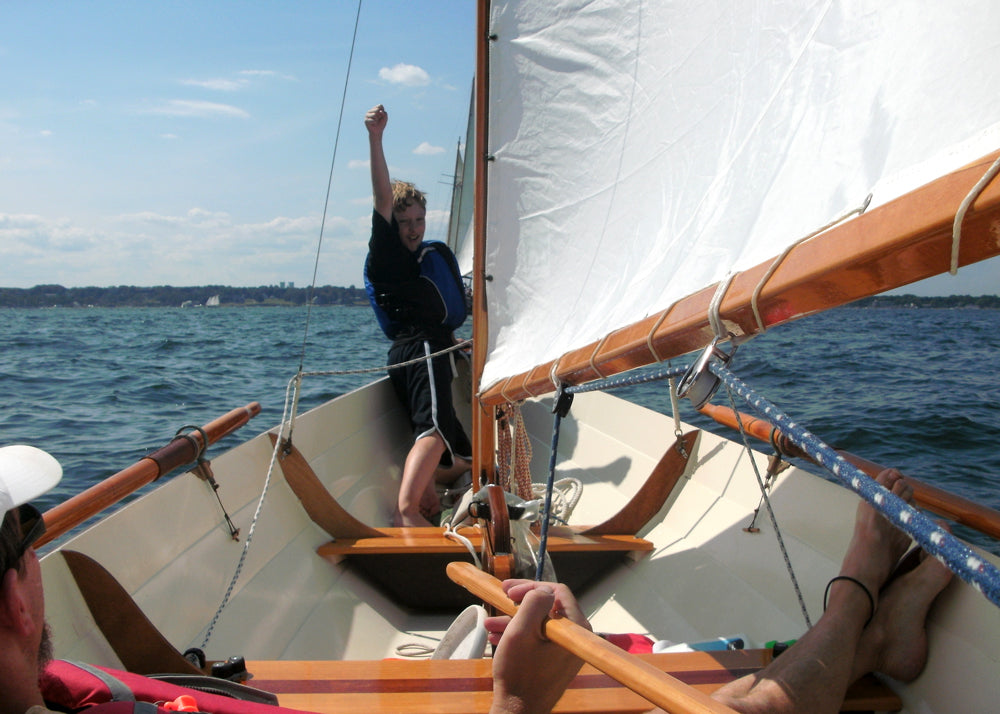

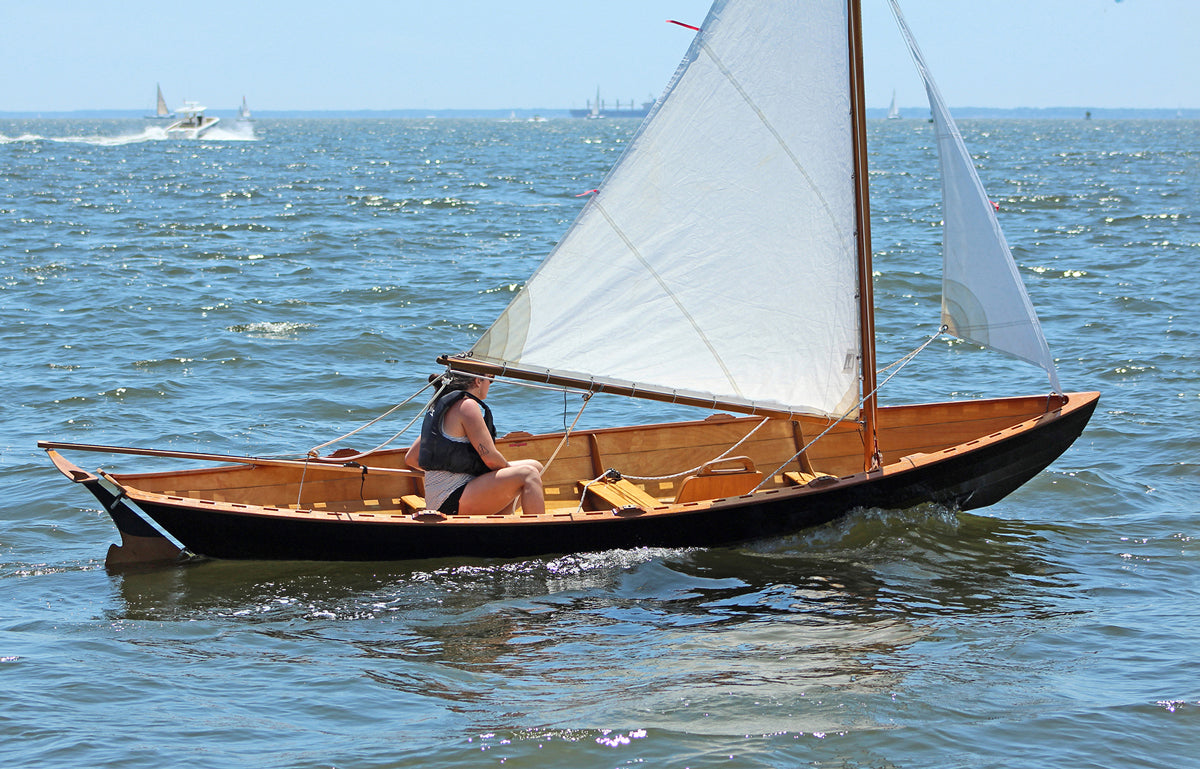

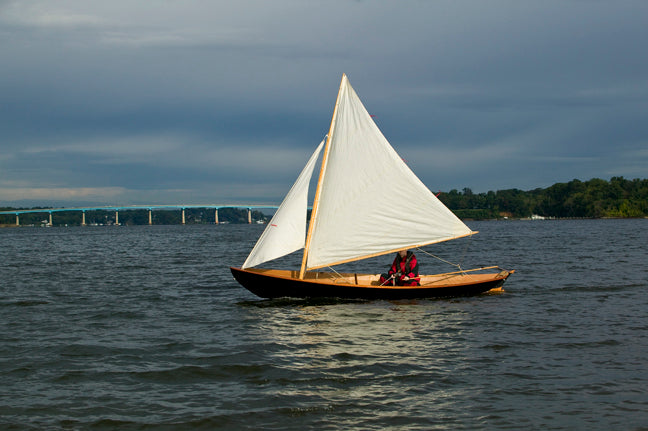

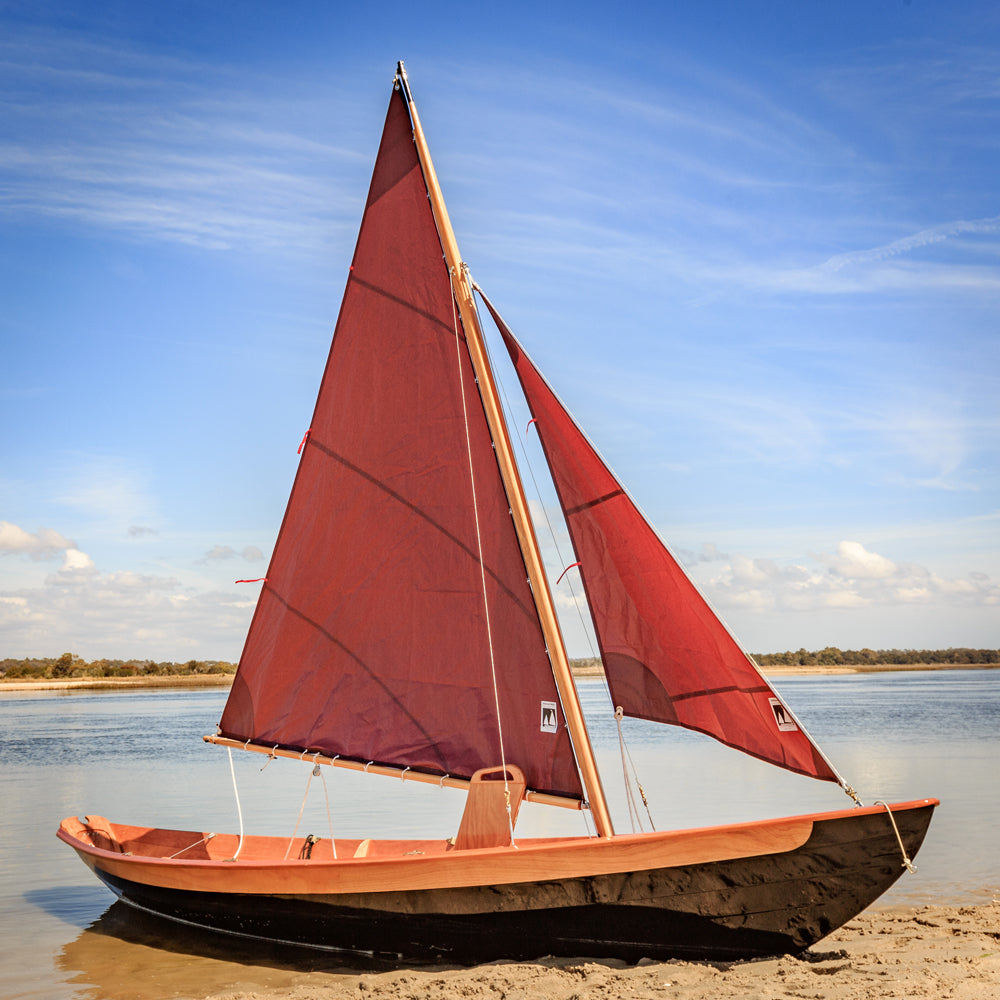

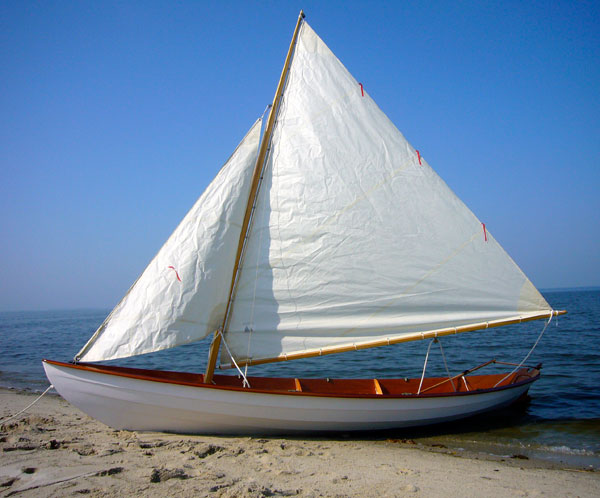

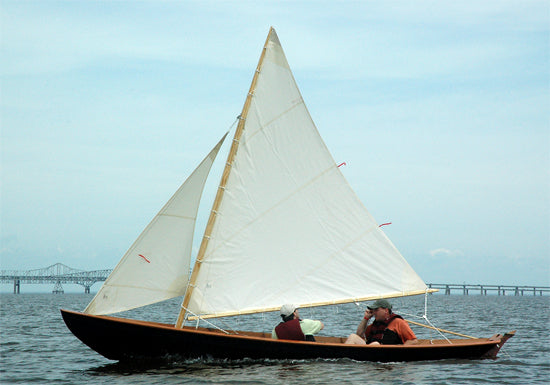

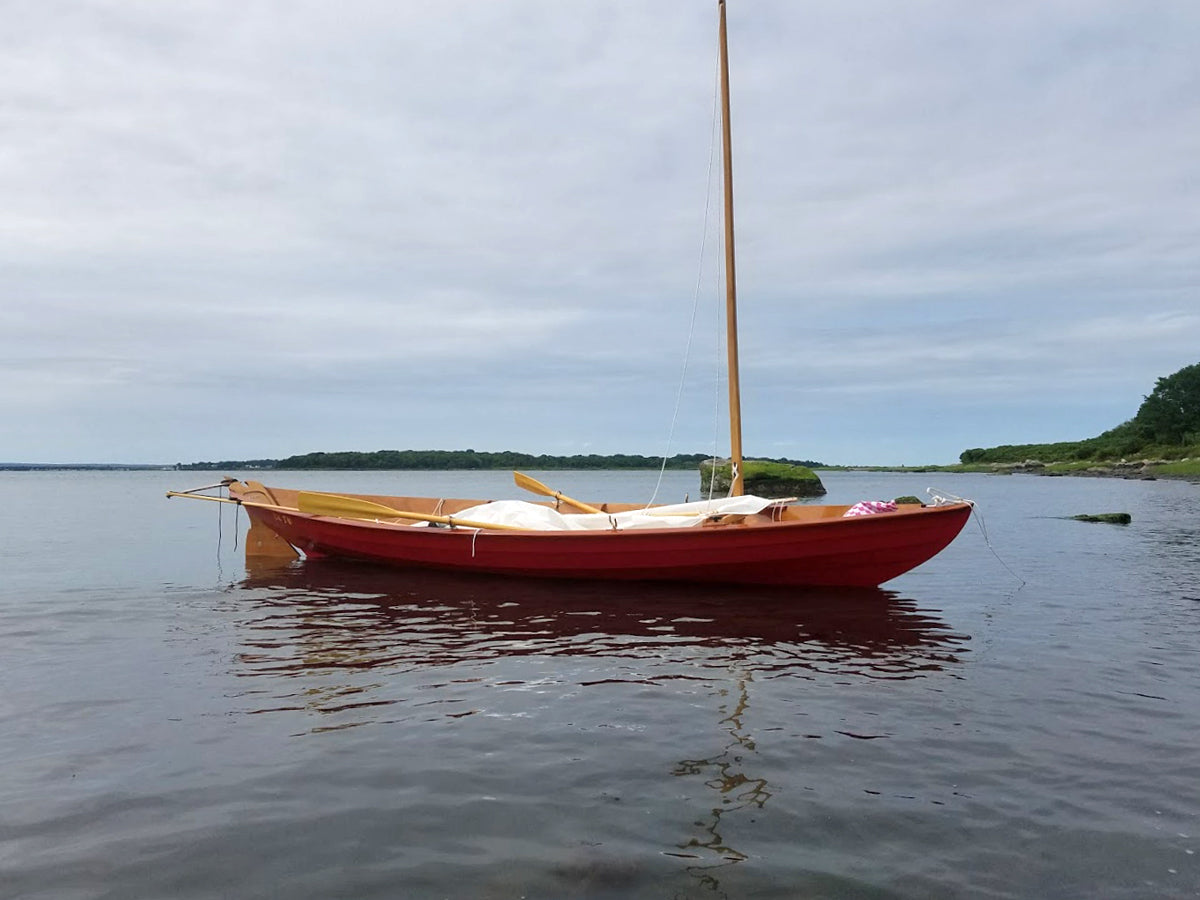

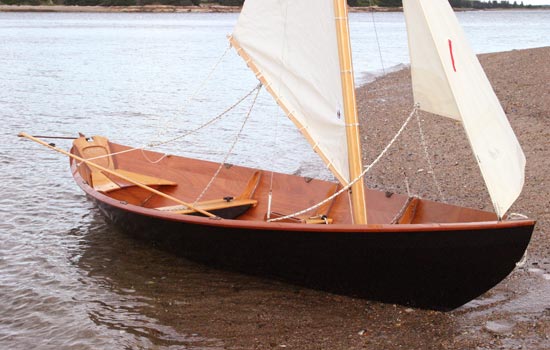

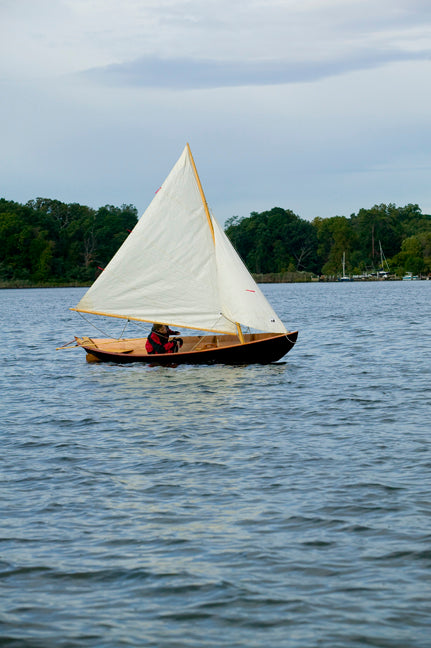

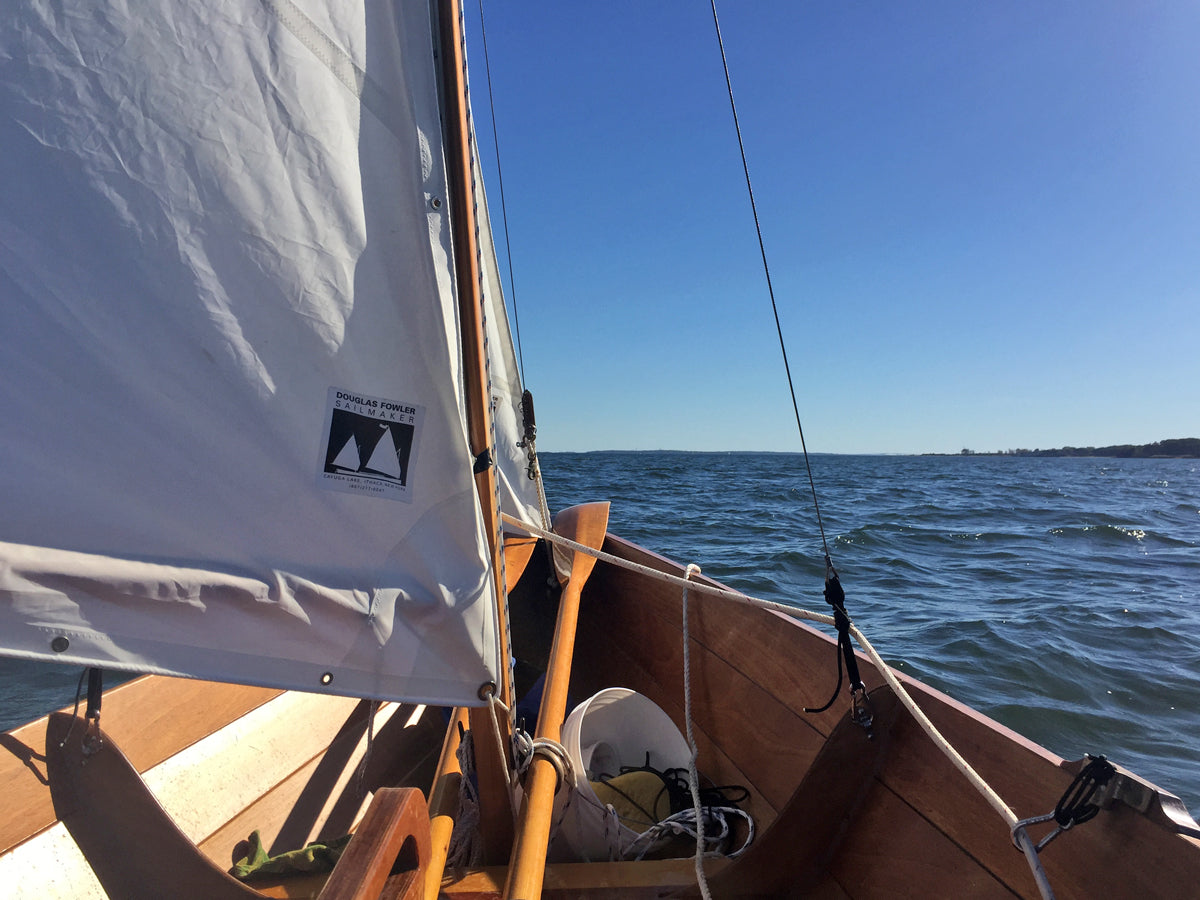

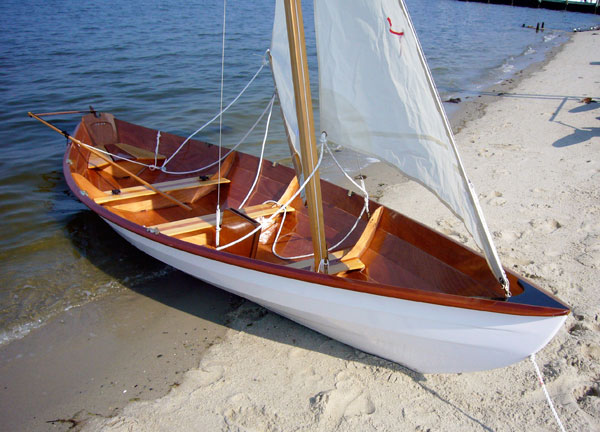

The proportions of the sailing rig follow traditional recreational dory rigs very closely. Under sail the Northeaster Dory is fast, stiff, and close-winded. Given the narrow waterline, the hull is extremely easily driven and jumps up to speed in light air---the acceleration is really noticeable. Dory sailors comment on the surprising absence of wake, visible evidence of a low-resistance hull. But like all dories, the hull flares rapidly above the water, so stability comes on strong as the boat heels under sail. Although you'll sail more slowly upwind, a convenient "first reef" is to take in the jib. Adding the "sailing upgrade" package puts the mainsail on a track for easier handling at the dock or marina, it also allows the use of the mainsail reef (standard with the sloop sailing kit, Nov 2015), plus cam cleats for the jib for easier single-handing. The Northeaster Dory Sailing Component Kit Upgrade is required if you wish to access the mainsail reef. You can read the Northeaster Dory Sailing Component Kit Upgrade instructions here.

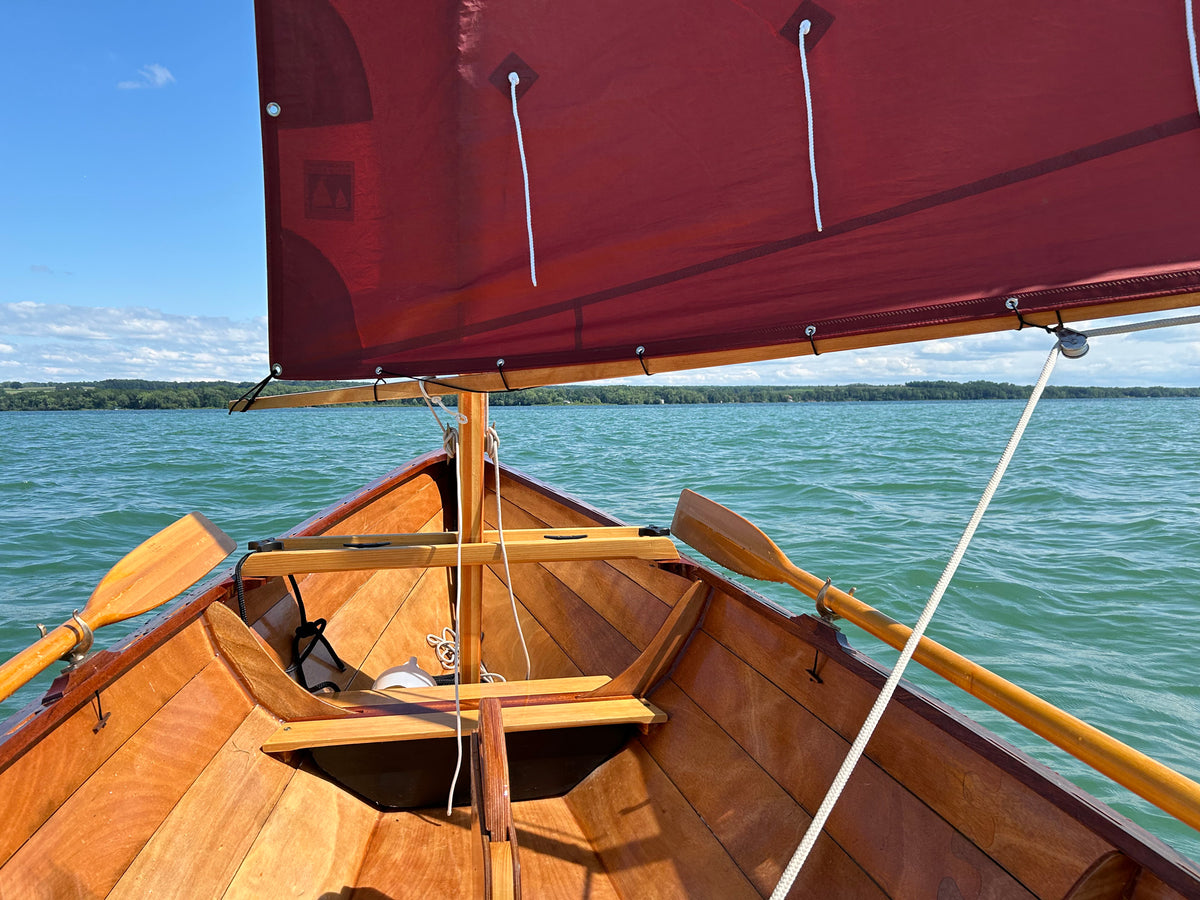

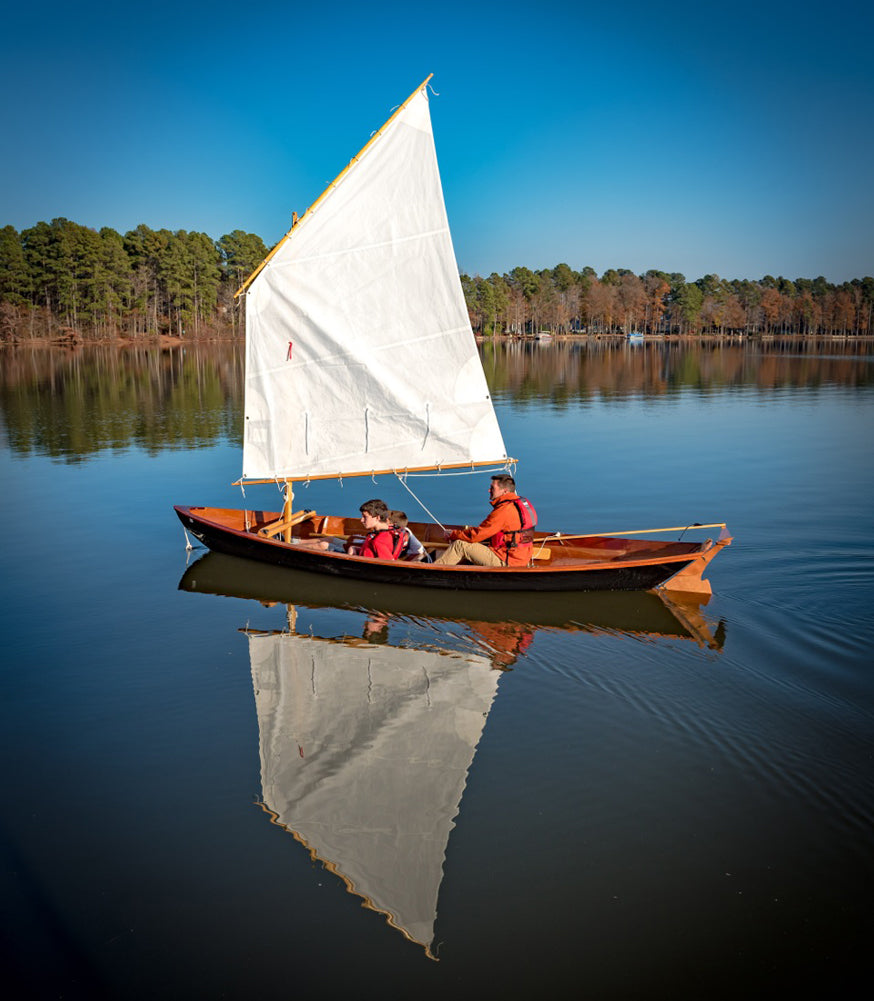

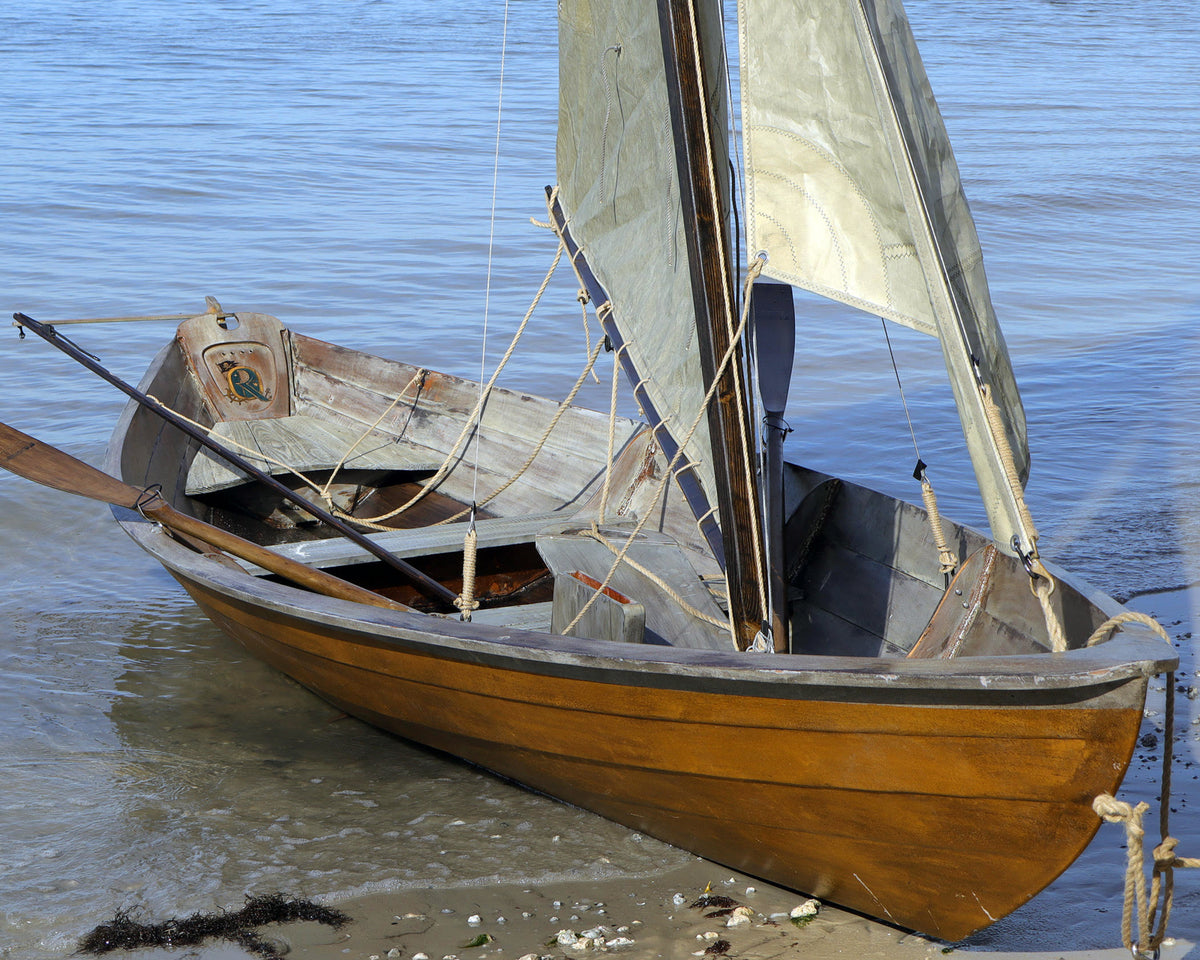

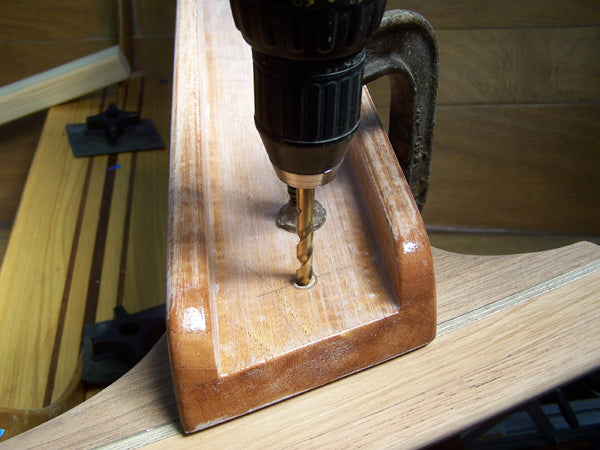

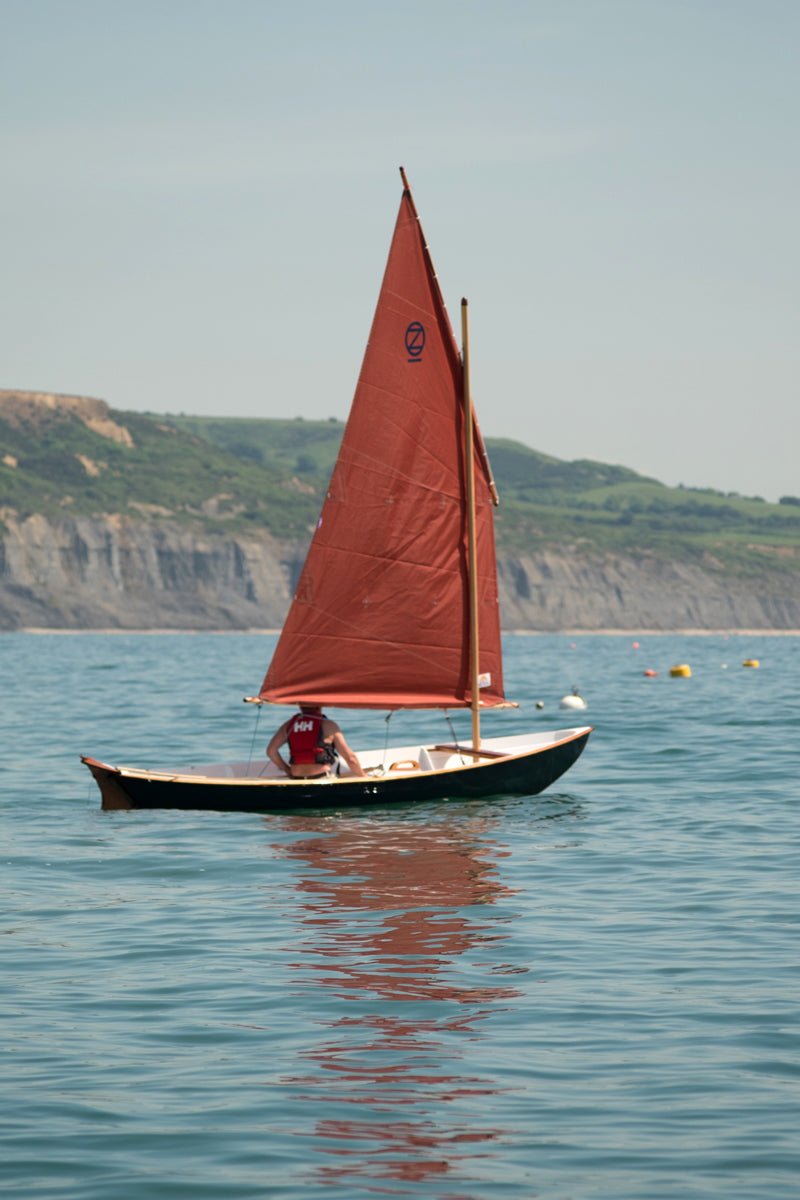

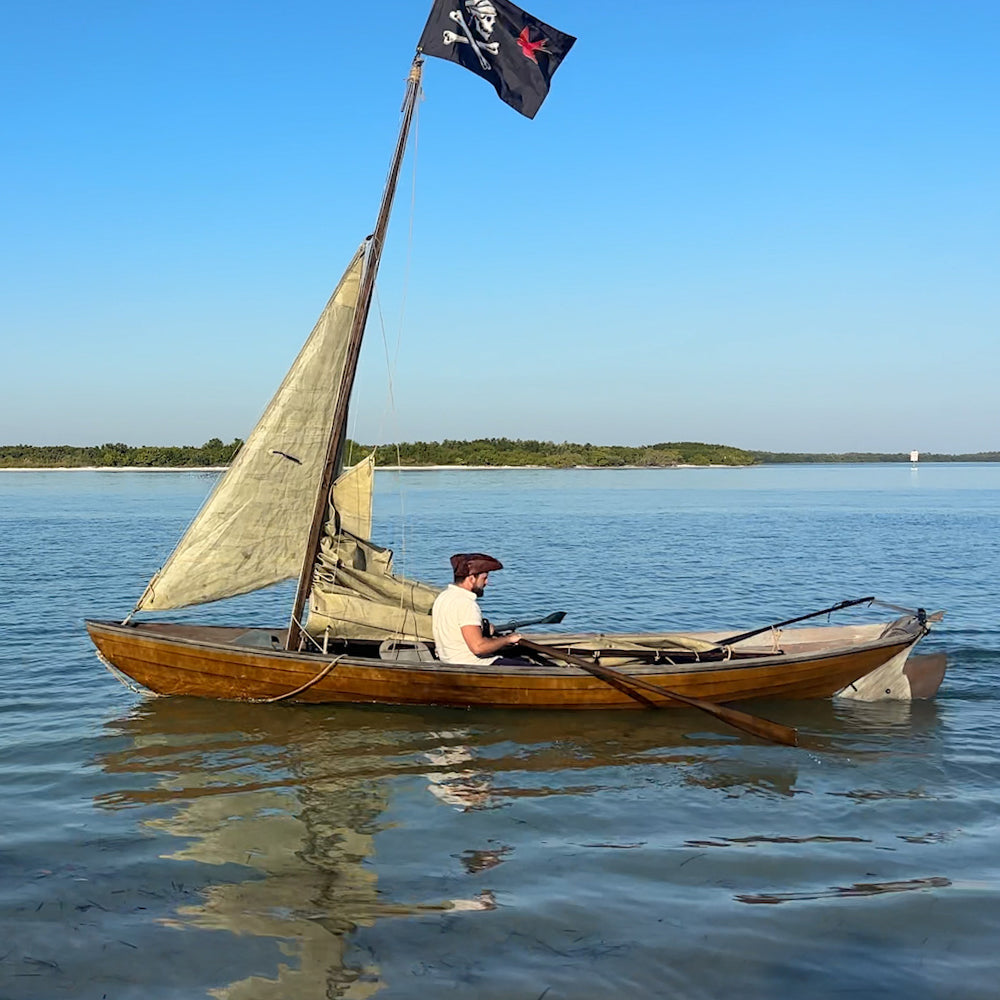

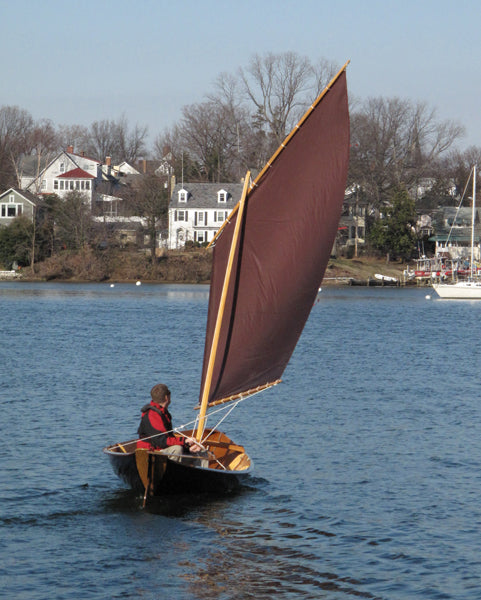

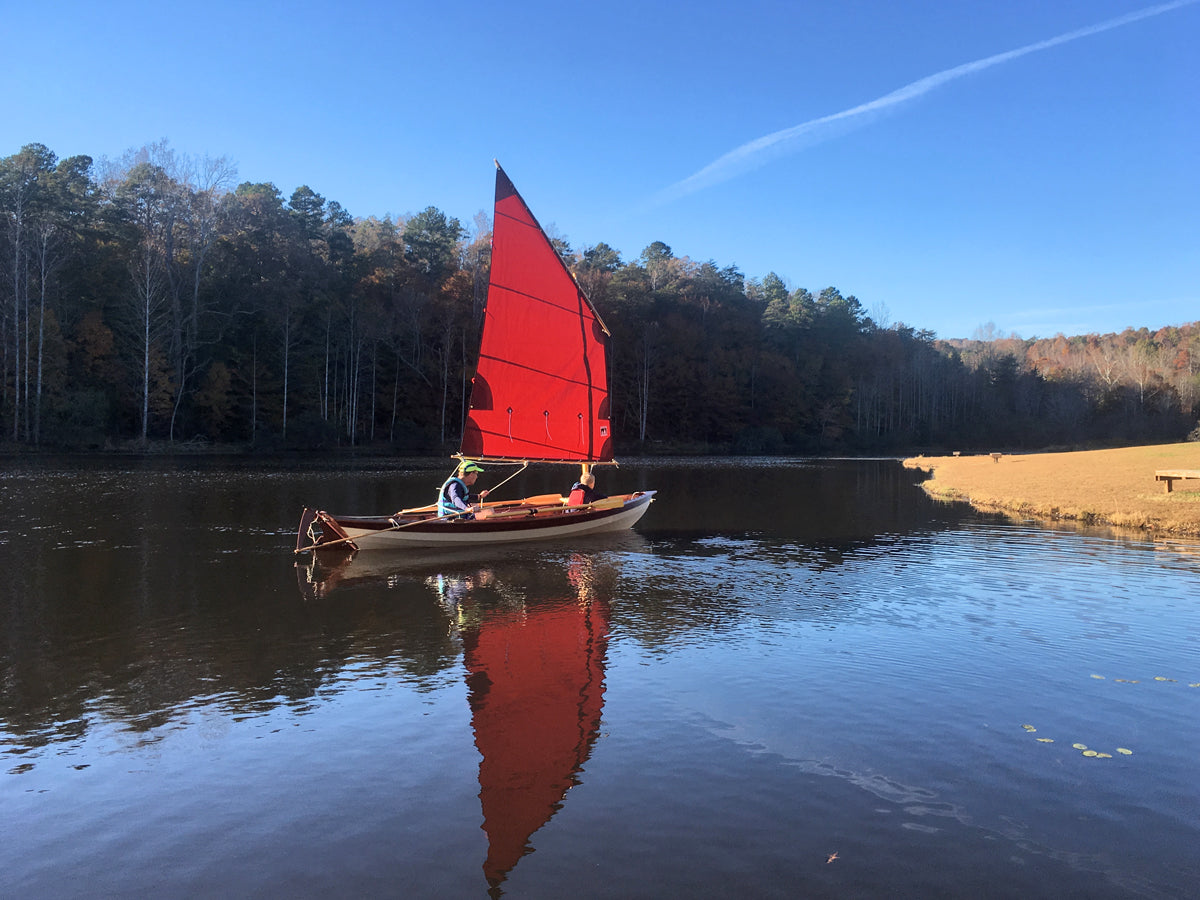

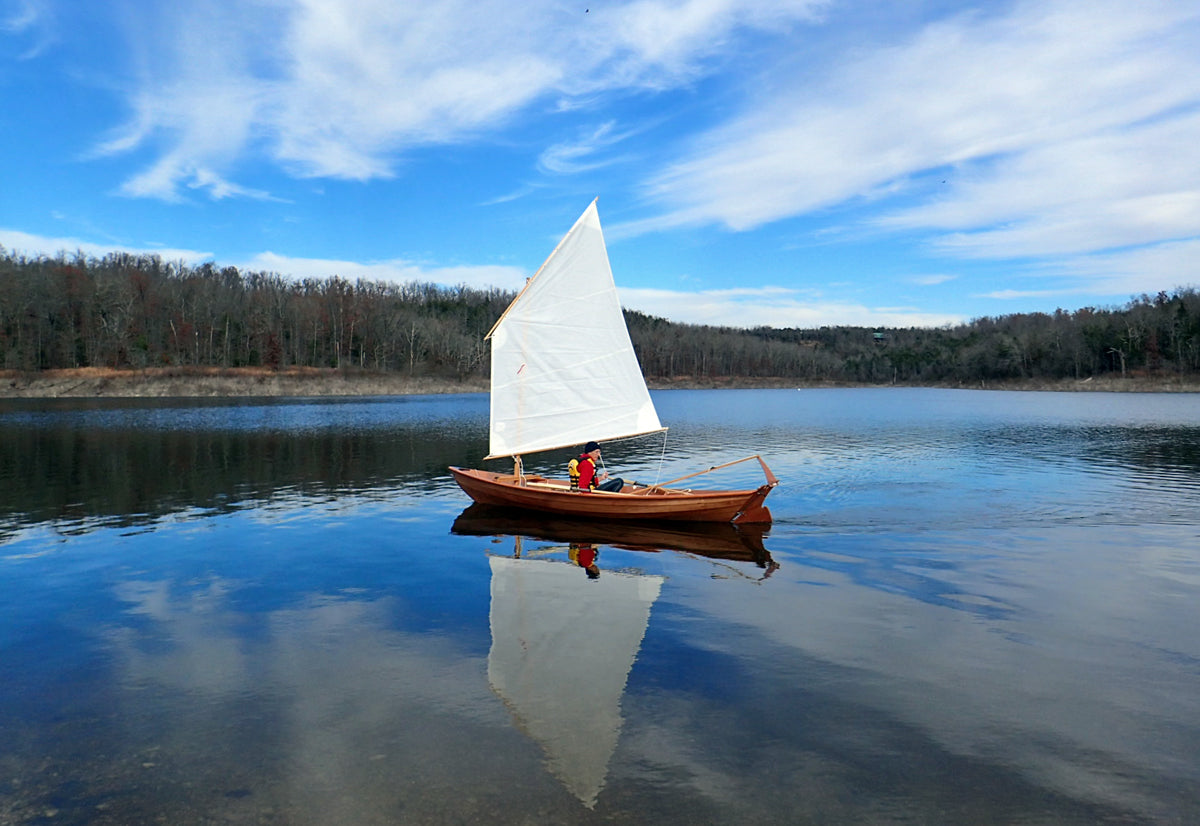

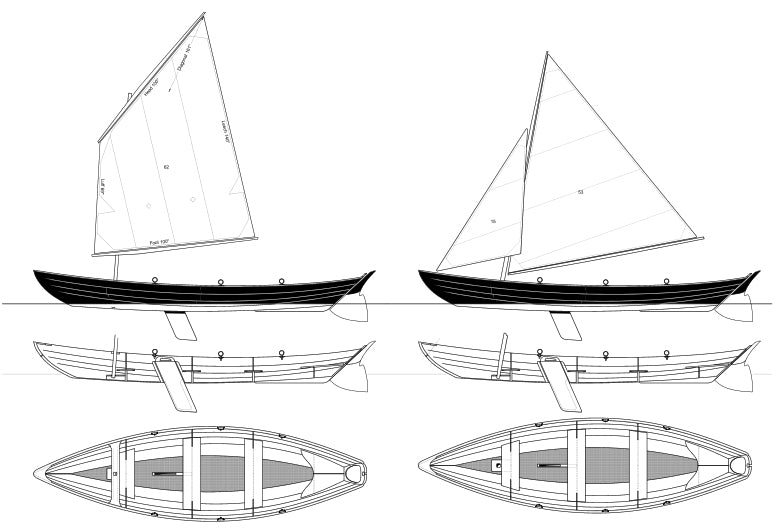

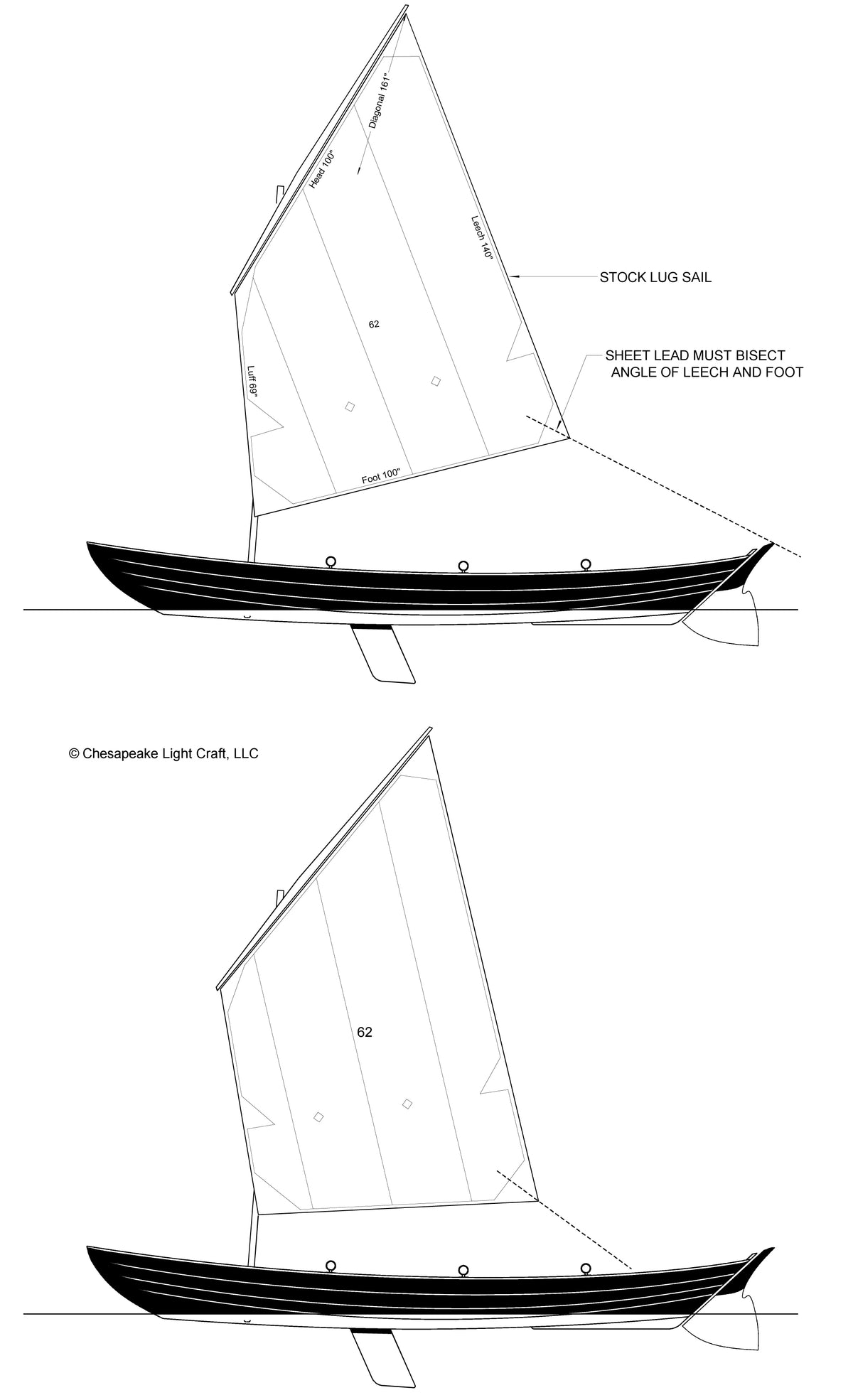

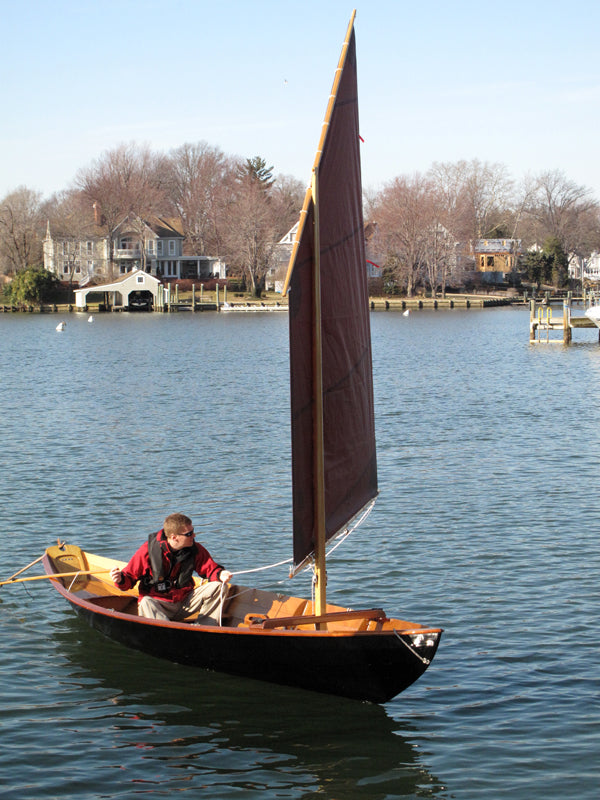

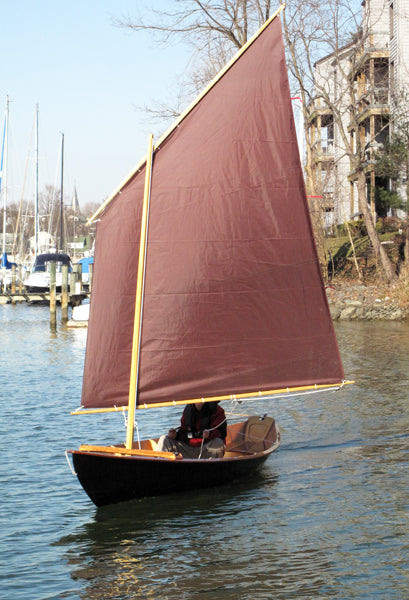

A Lug Rig joined the options list in 2012. Right from the beginning there were requests for a simpler lug rig. The lug rig is quicker to set up, easier to handle, and can be reefed or stowed more easily while out on the water (reef point standard with the lug rig, Nov 2015). It's not quite as fast as the sloop rig, but it might win if you count setup time on the beach. You can read the entire Northeaster Dory Lug Rig installation guide here.
A popular option, the Northeaster Dory's lug rig can be added to a hull built for rowing, or retrofitted to a boat that already has the sloop rig. (Our showroom boat can be switched between sloop and lug rigs in a few minutes.)

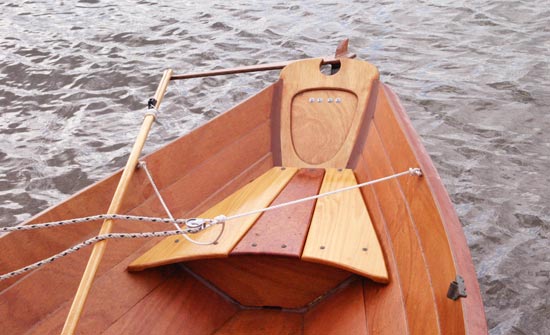

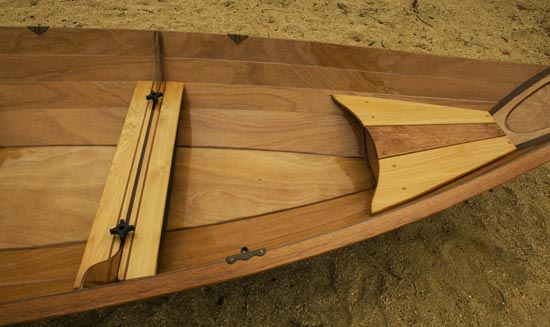

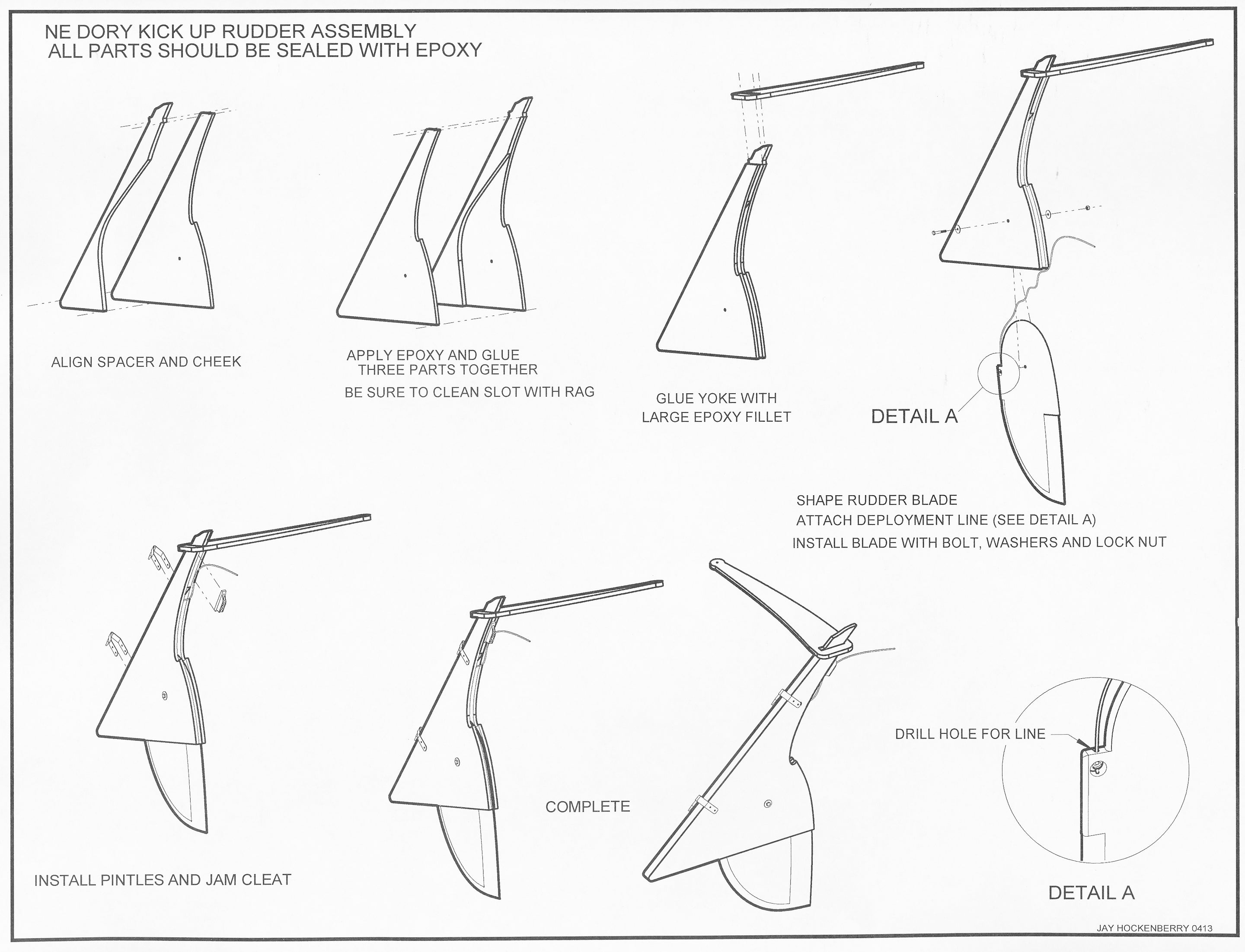

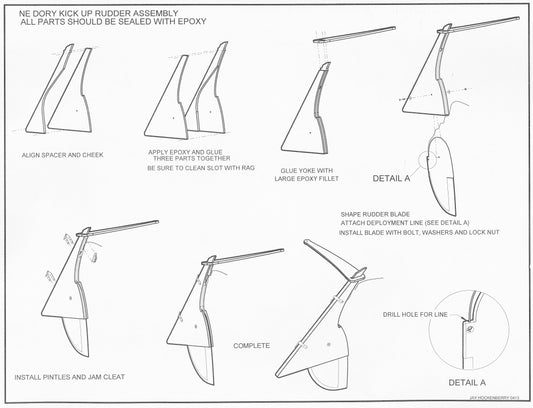

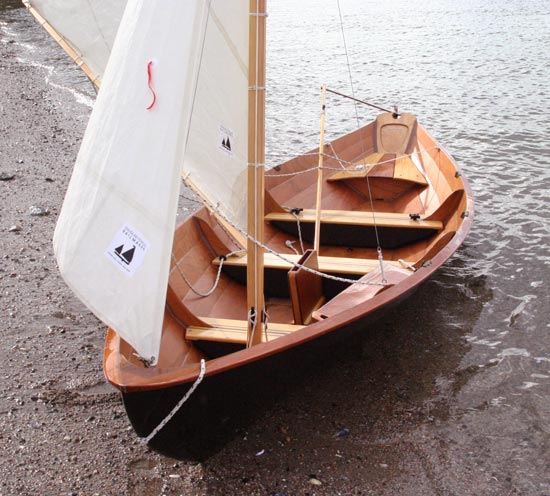

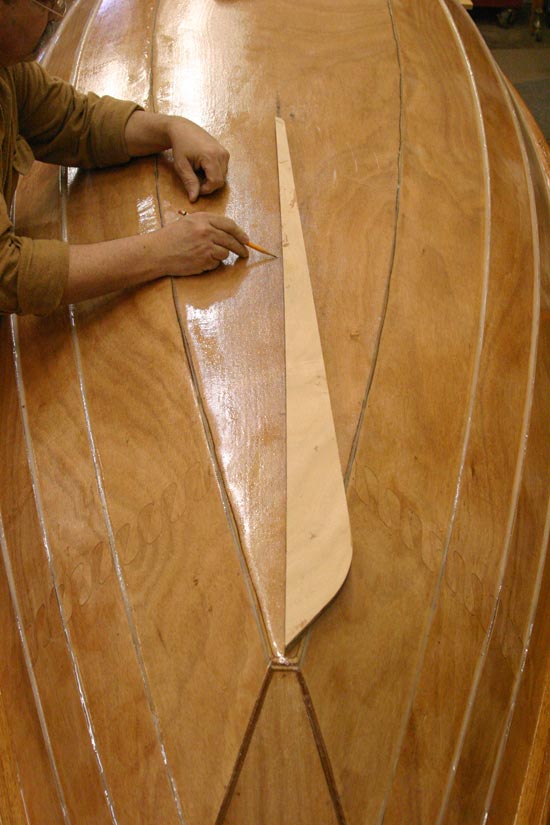

A daggerboard simplifies construction, and a yoke-and-draglink tiller arrangement (familiar from our Skerry design) gives the crew better seating options under sail. As with all Chesapeake Light Craft sailing kits, the sailing rig can be added to the Dory at any time, either concurrently with construction or years after the rowing version is complete.
Our sails are built by Douglas Fowler Sailmakers in New York. The Sailing Component kits include the sail/s. They are also available individually as replacements or for the plans builder: Dory sloop sails, Dory lug sails.
What builders are saying
Main Gallery

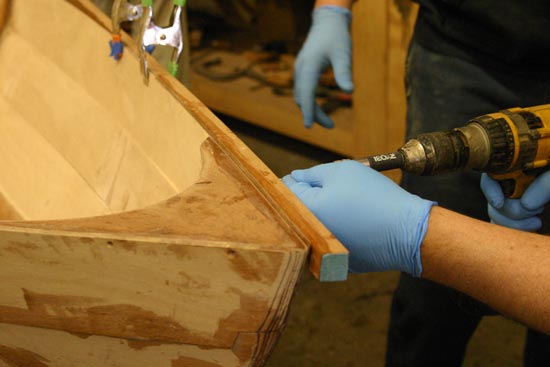

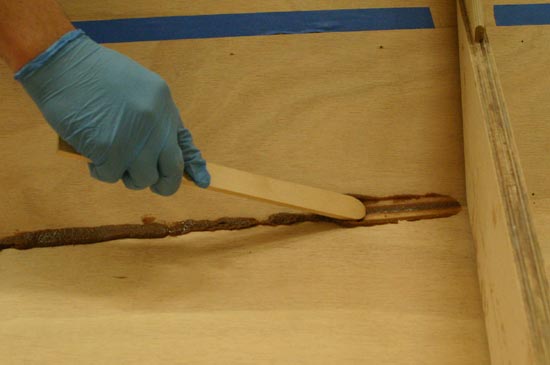

Construction Gallery

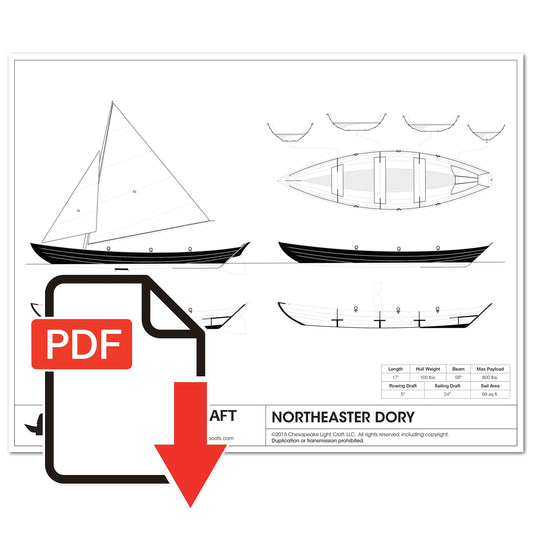

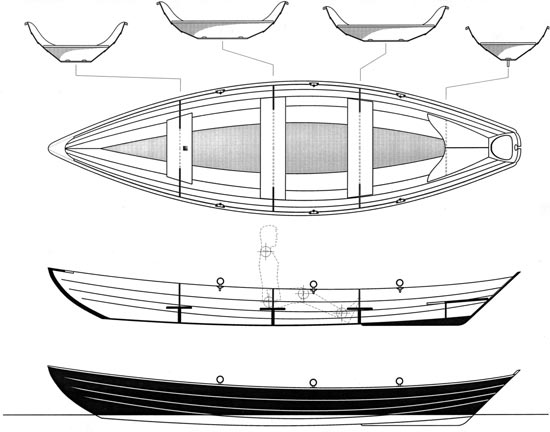

Line Drawings
Videos
Chesapeake Light Craft Northeaster Dory
Boatymoon

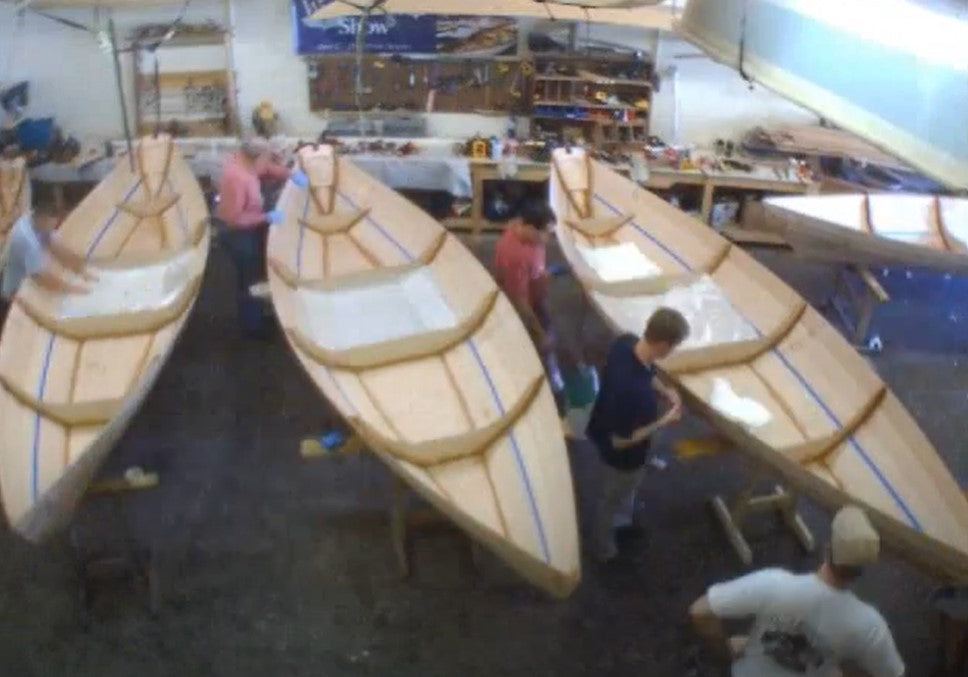

Building Northeaster Dories at Chesapeake Light Craft: Stitch-and-Glue Boatbuilding
